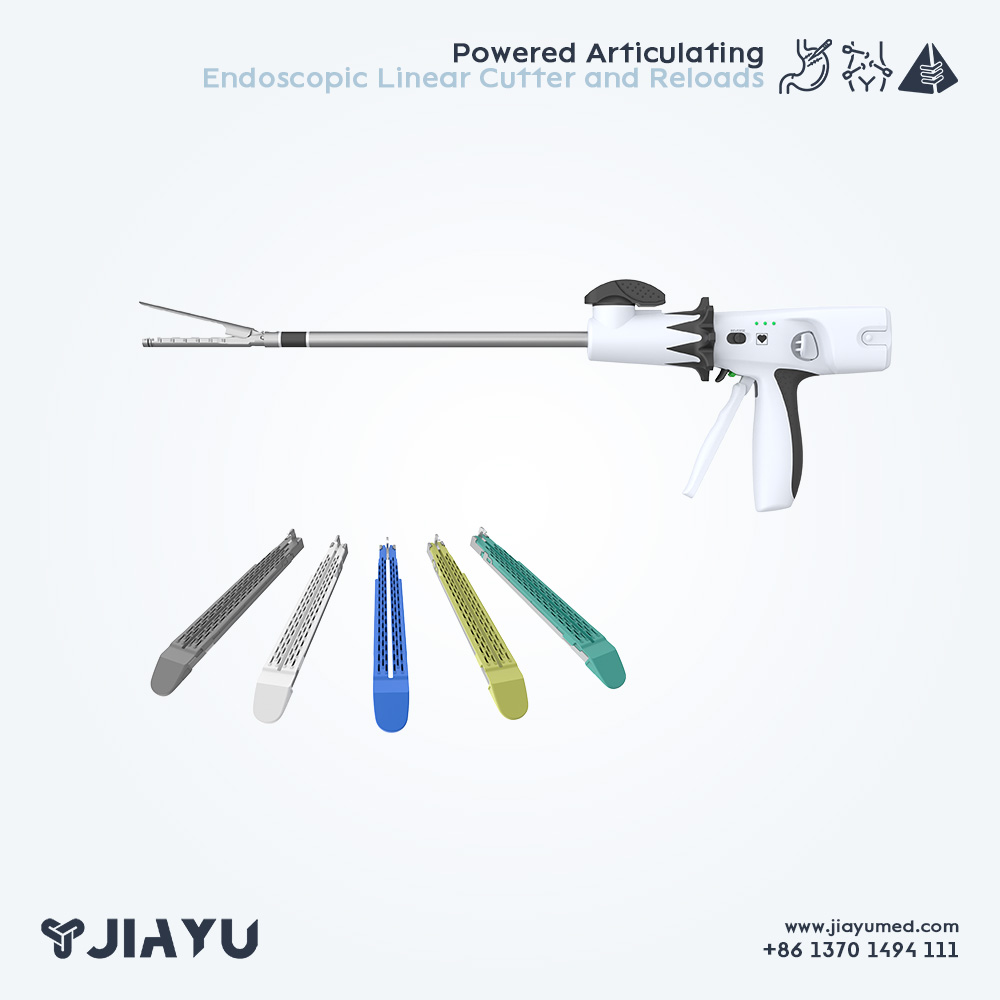

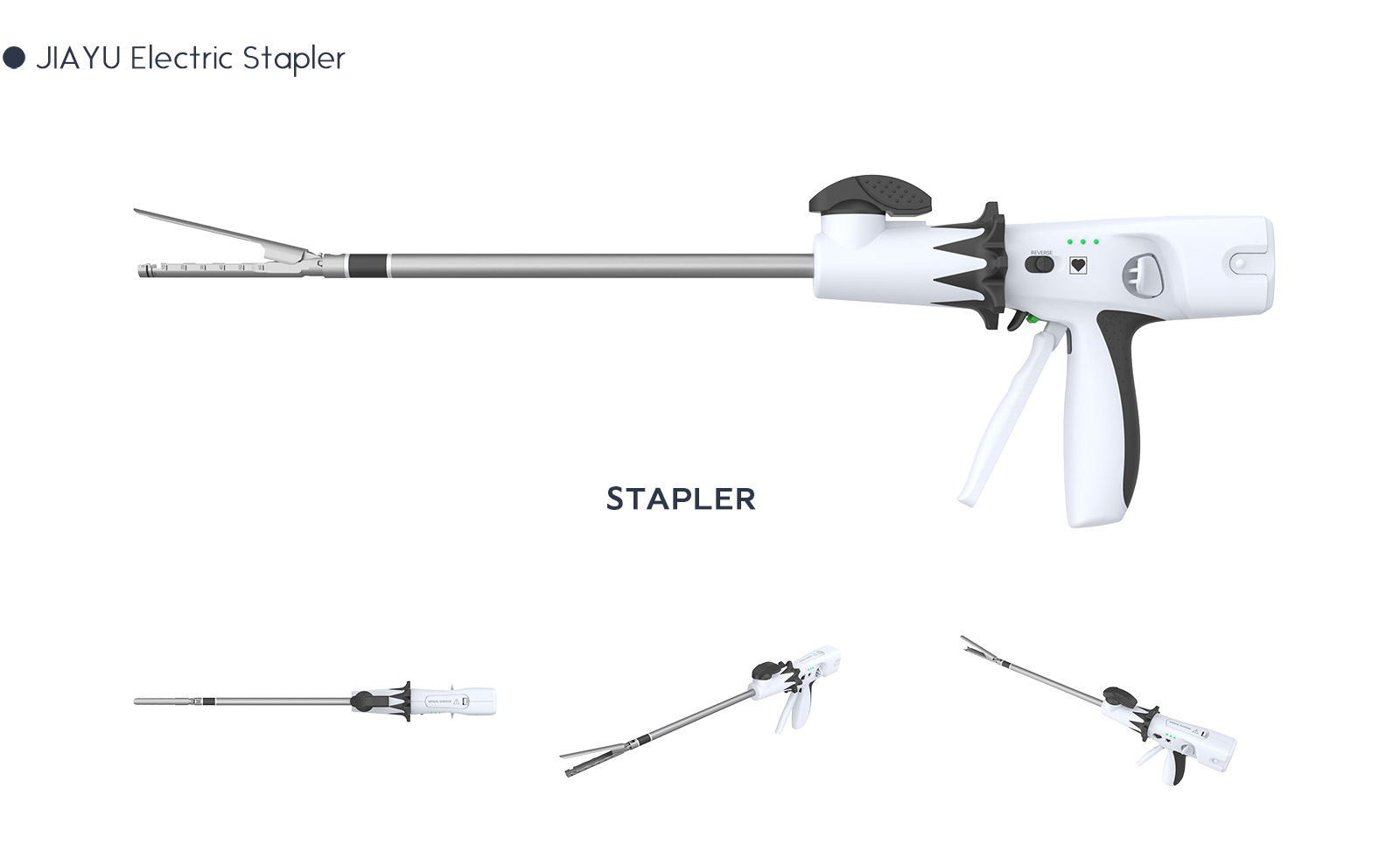

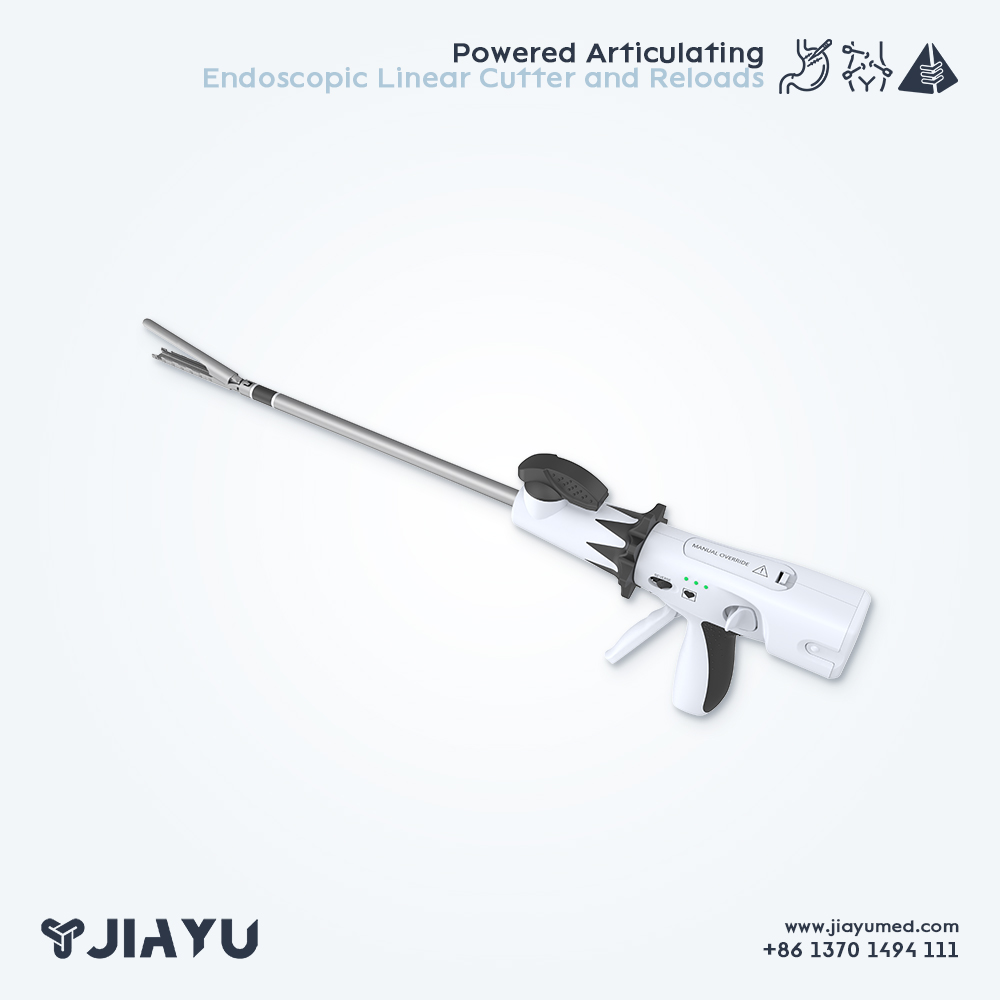

Powered Articulating Endoscopic Linear Cutter and Corresponding Reloads

This powered articulating endoscopic linear cutter and corresponding reloads are single‑use electric surgical devices designed for tissue transection, resection and anastomosis in minimally invasive endoscopic procedures. Engineered with precise angle control, dynamic firing technology and pure titanium staples, it delivers stable performance across general, gynecologic, urologic and thoracic surgeries, supporting standardized, efficient and safe clinical workflows.

Powered electric drive with dynamic firing ensures smooth stapling and optimized tissue compression
Precise gear‑controlled articulation up to 50° bilaterally with 7 adjustable angles for accurate positioning
Gripping surface technology reduces tissue slippage and improves staple formation in thick tissue
Pure titanium staples offer high biocompatibility, no ionic toxicity and excellent corrosion resistance

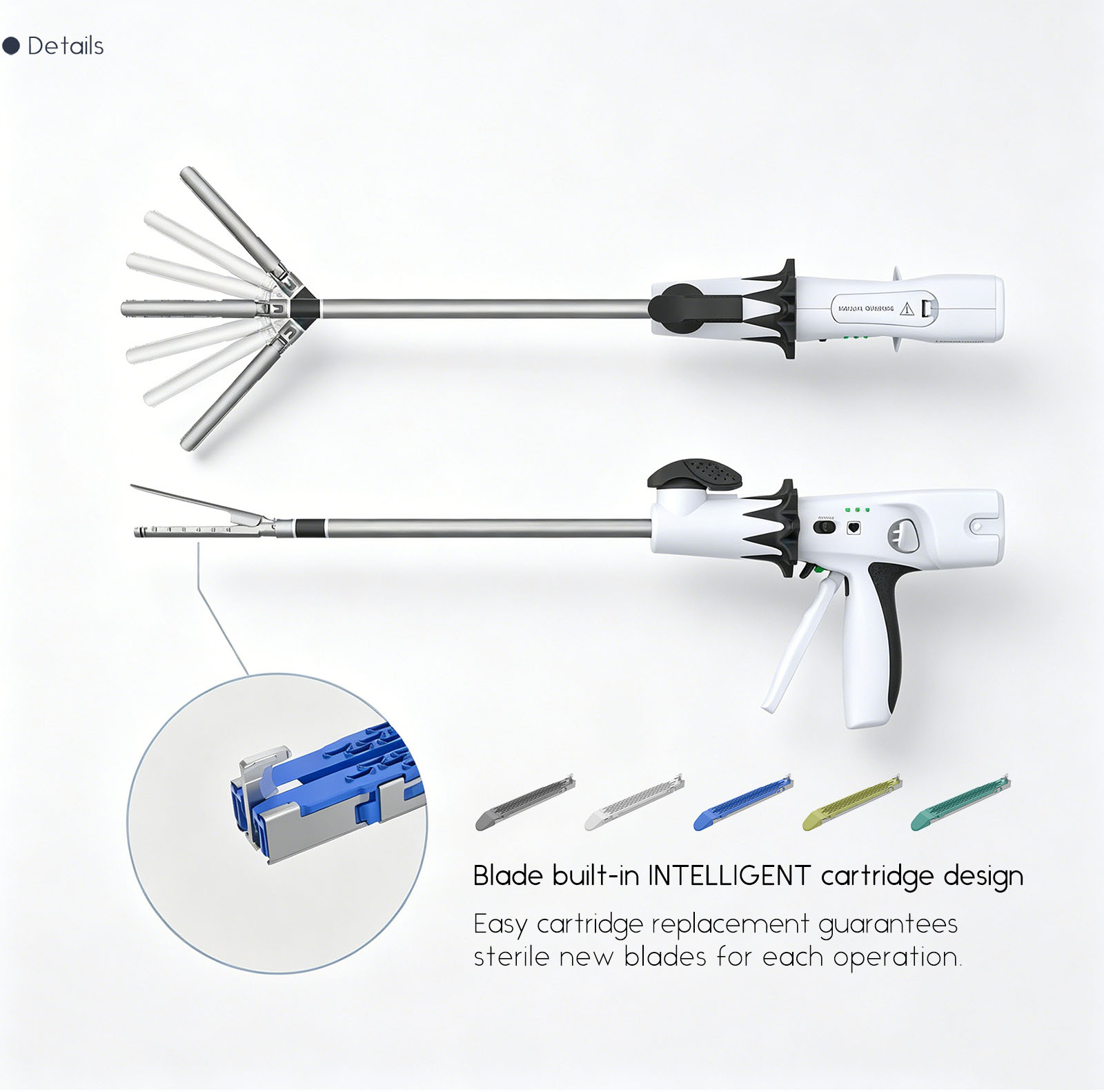

Disposable cartridge with integrated sharp blade ensures consistent cutting and avoids cross‑infection
Original stable battery supports reliable repeated firing and long standby time for clinical use
Multiple shaft lengths, staple line lengths and staple heights adapt to diverse surgical requirements

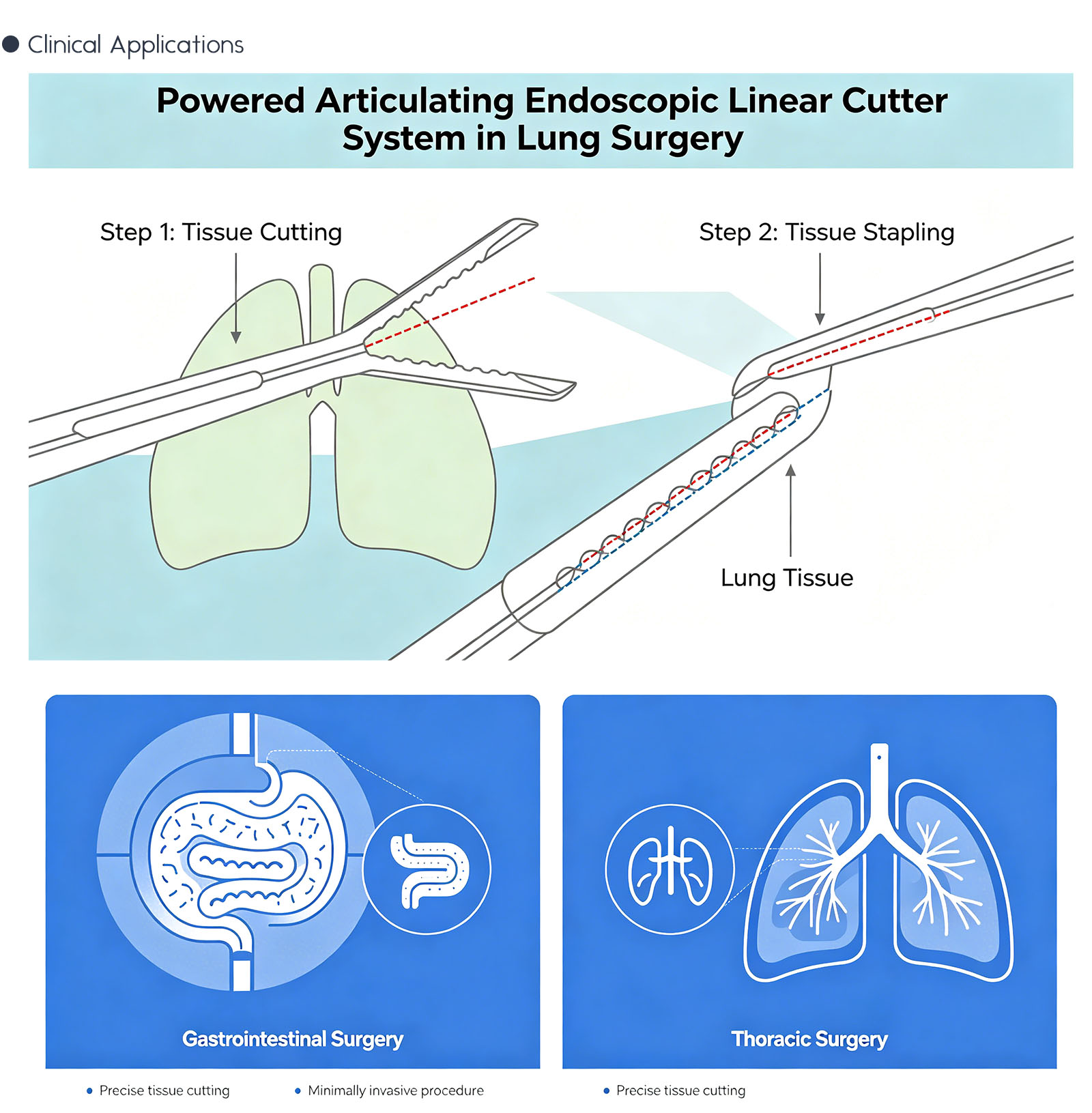

This Powered Articulating Endoscopic Linear Cutter System is designed for minimally invasive endoscopic procedures requiring tissue transection, resection and anastomosis. It is widely applicable in multiple surgical departments including general surgery, gynecology, urology and thoracic surgery, supporting clinical procedures such as gastrointestinal anastomosis, partial gastrectomy, appendectomy, vaginal hysterectomy, nephrectomy, cystectomy, lung resection and pulmonary wedge resection. As a professional electric endoscopic stapling system, it provides stable and controllable performance for complex soft tissue handling.

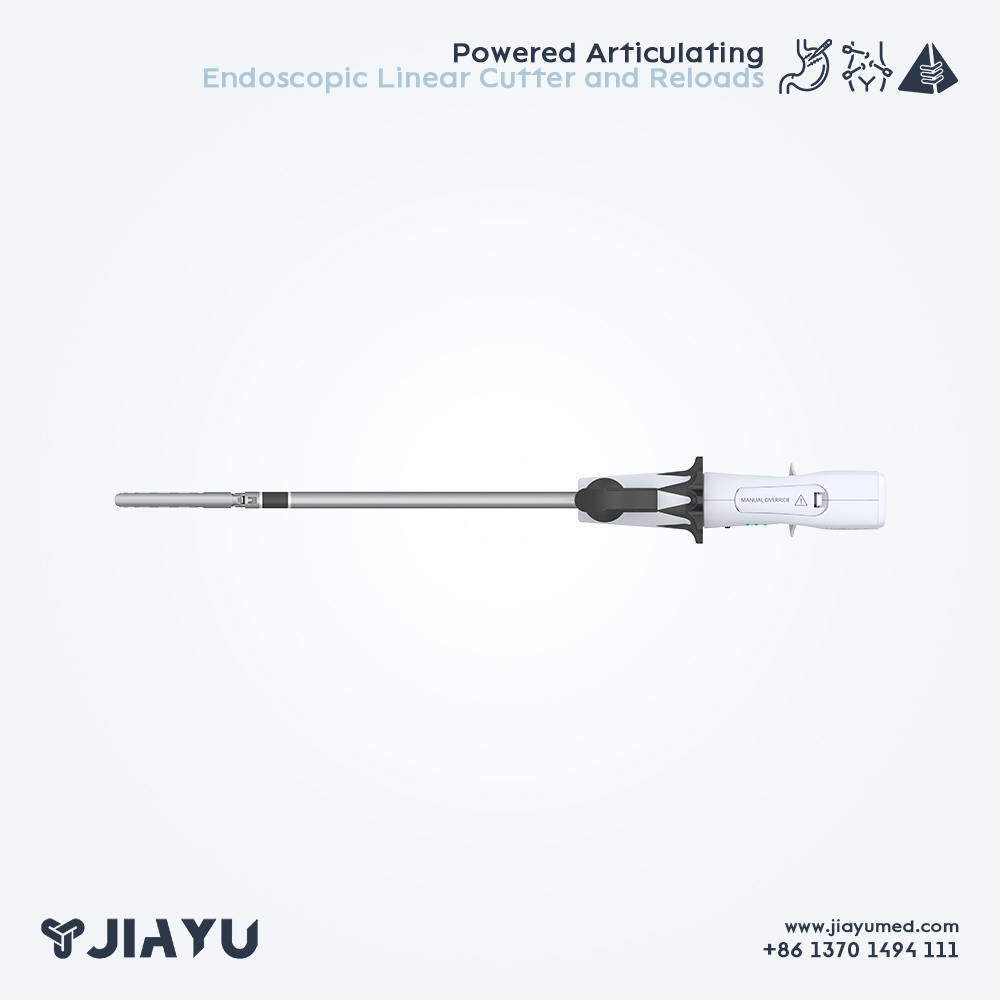

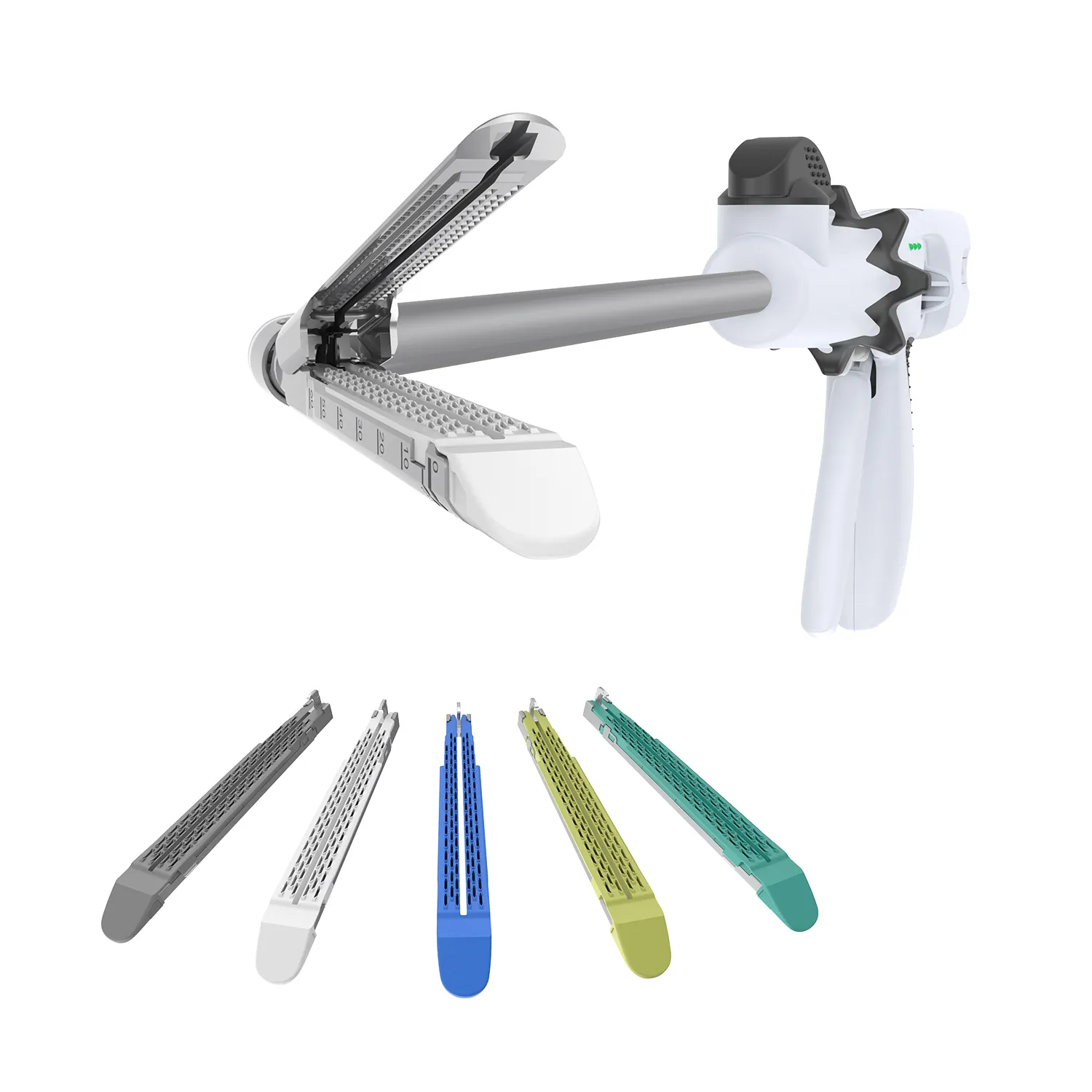

The instrument features high‑precision articulation control with a gear‑driven head that supports 0°, 16°, 32° and 50° bending angles bilaterally, with ±2° accuracy at each position for a total of 7 adjustable angles. It is available in three shaft lengths (200mm, 260mm, 360mm) and two staple line lengths (45mm, 60mm), matched with 10 types of color‑coded reloads featuring different open and closed staple heights. This comprehensive specification range supports accurate matching with diverse tissue thicknesses and anatomical conditions.

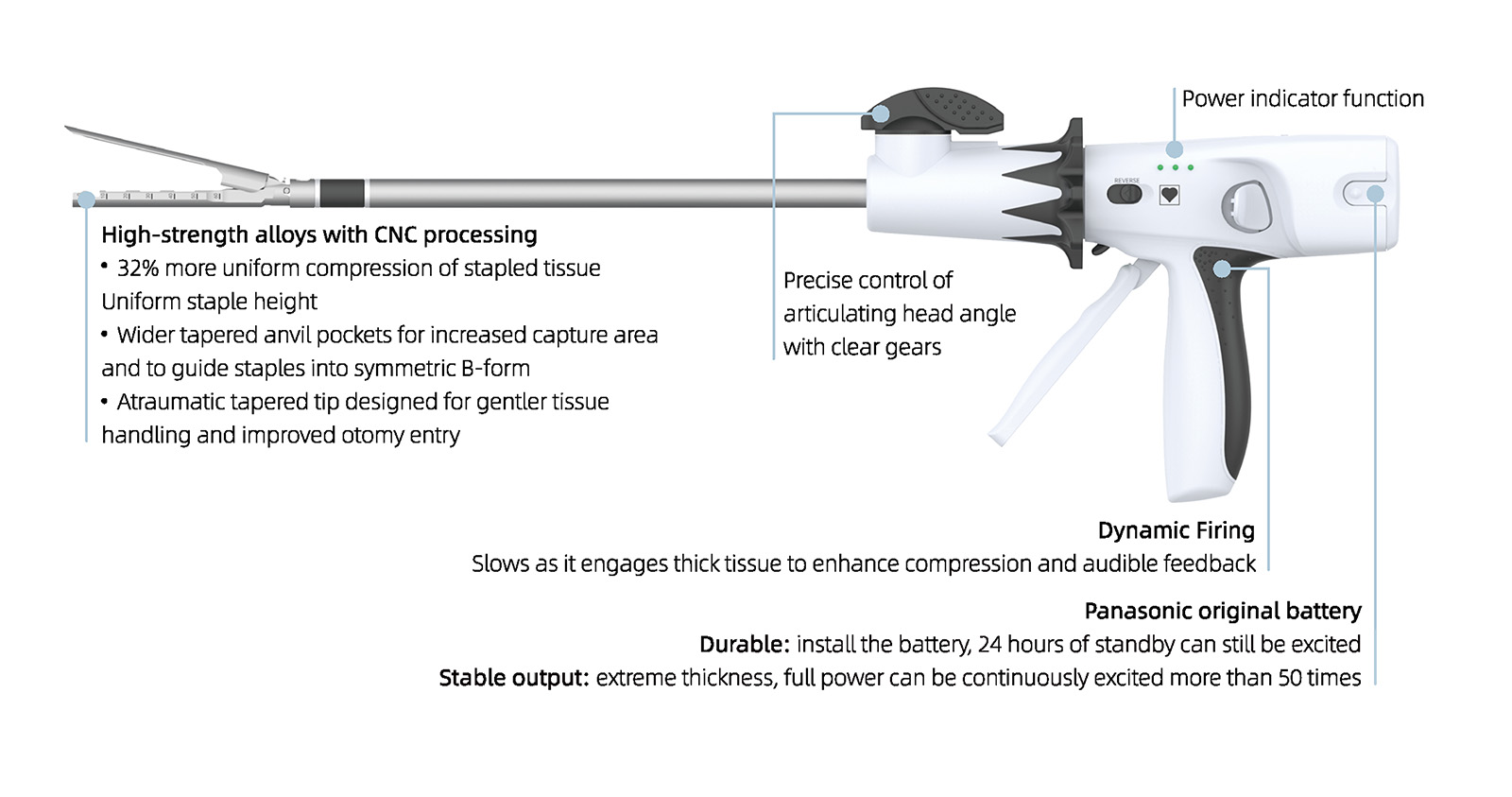

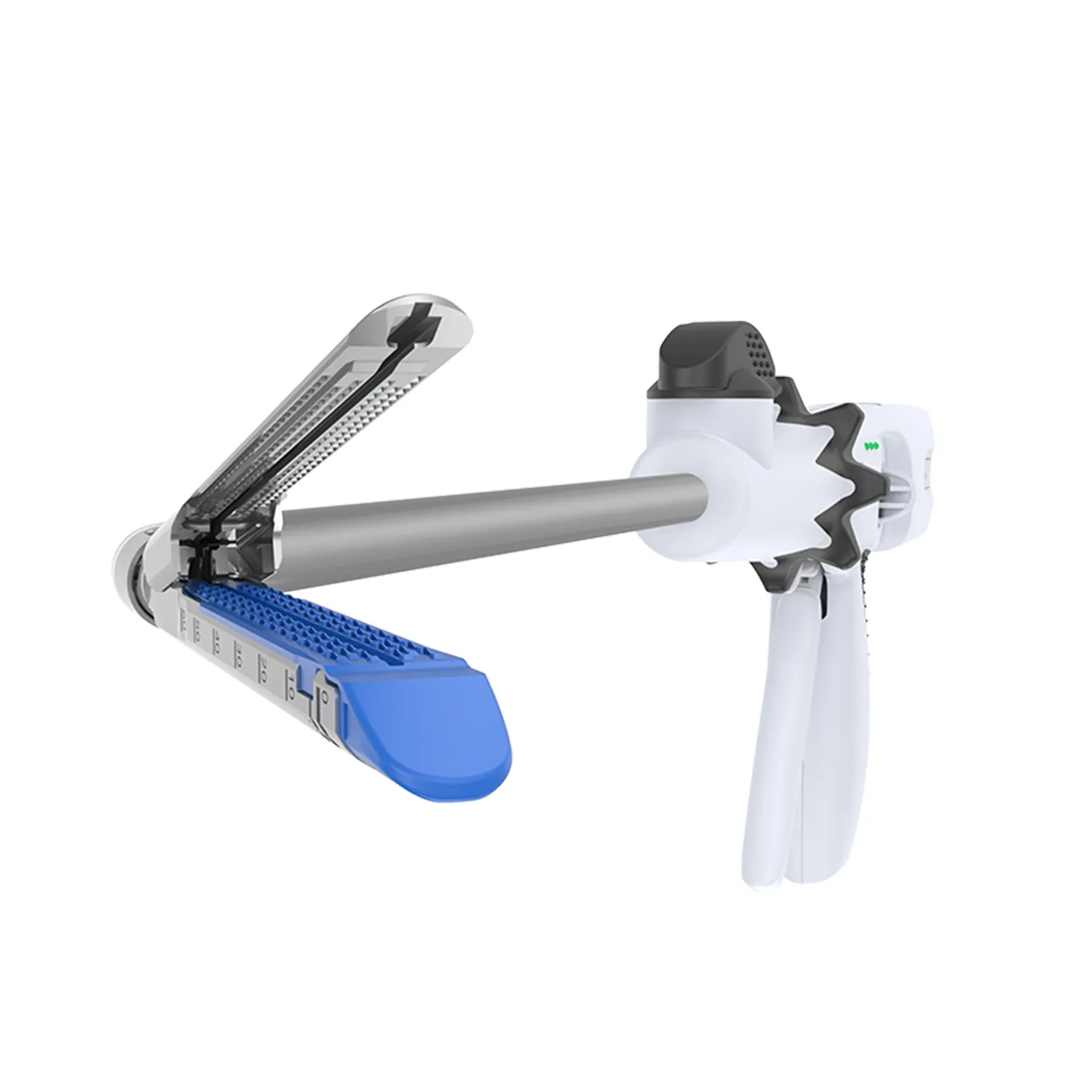

Built with advanced structural and material technologies, the system adopts high‑strength alloys processed by CNC technology, providing 32% more uniform tissue compression and consistent staple height. The wide tapered anvil pockets increase tissue capture area and guide staples into symmetric B‑form, while the atraumatic tapered tip enables gentler tissue handling and easier trocar entry. Gripping surface technology enhances tissue stability during firing, and dynamic firing slows down when engaging thick tissue to improve compression with audible feedback, helping reduce staple line leaks.

The system uses pure titanium staples that contain no alloying elements, avoiding ionic toxicity and delivering superior biocompatibility and corrosion resistance. It is equipped with an original industrial‑grade battery that supports 24‑hour standby and more than 50 consecutive firings at full power for stable output. Each reload includes a disposable sharp blade to ensure consistent sharpness and smooth firing, eliminating cross‑infection risks. A power indicator supports clear operational status recognition. As a single‑use, ready‑to‑use device, it simplifies clinical workflow, lowers hospital operational costs and provides a reliable solution for medical institutions and distributors.

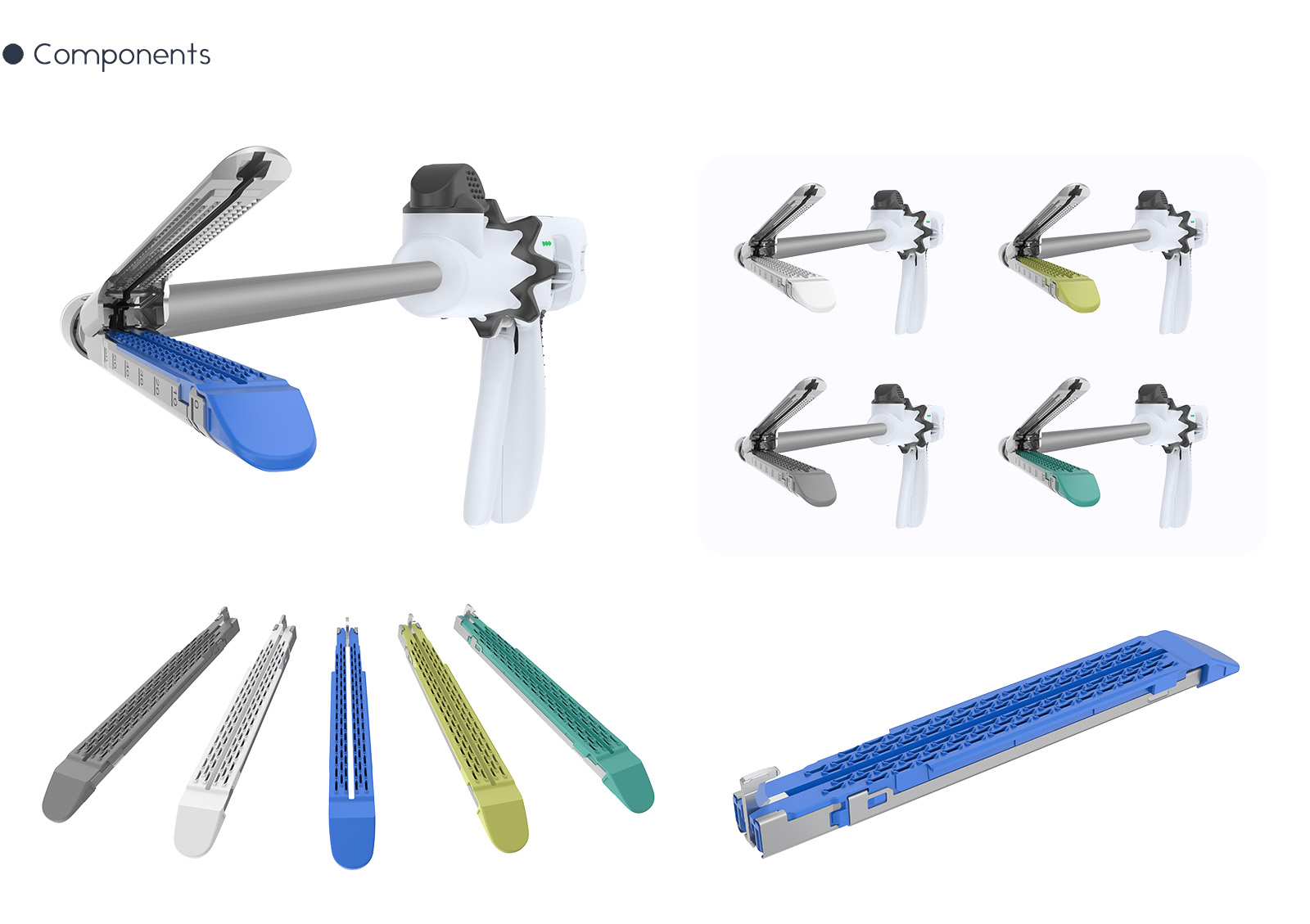

Cartridges

Item Number	Shaft Length Up to Articulation	Staple Line Length	Angles of Reload Jaw
JY200-60	200mm	60mm	0°/16°/32°/50°
JY260-60	260mm	60mm	0°/16°/32°/50°
JY360-60	360mm	60mm	0°/16°/32°/50°
JY200-45	200mm	45mm	0°/16°/32°/50°
JY260-45	260mm	45mm	0°/16°/32°/50°
JY360-45	360mm	45mm	0°/16°/32°/50°

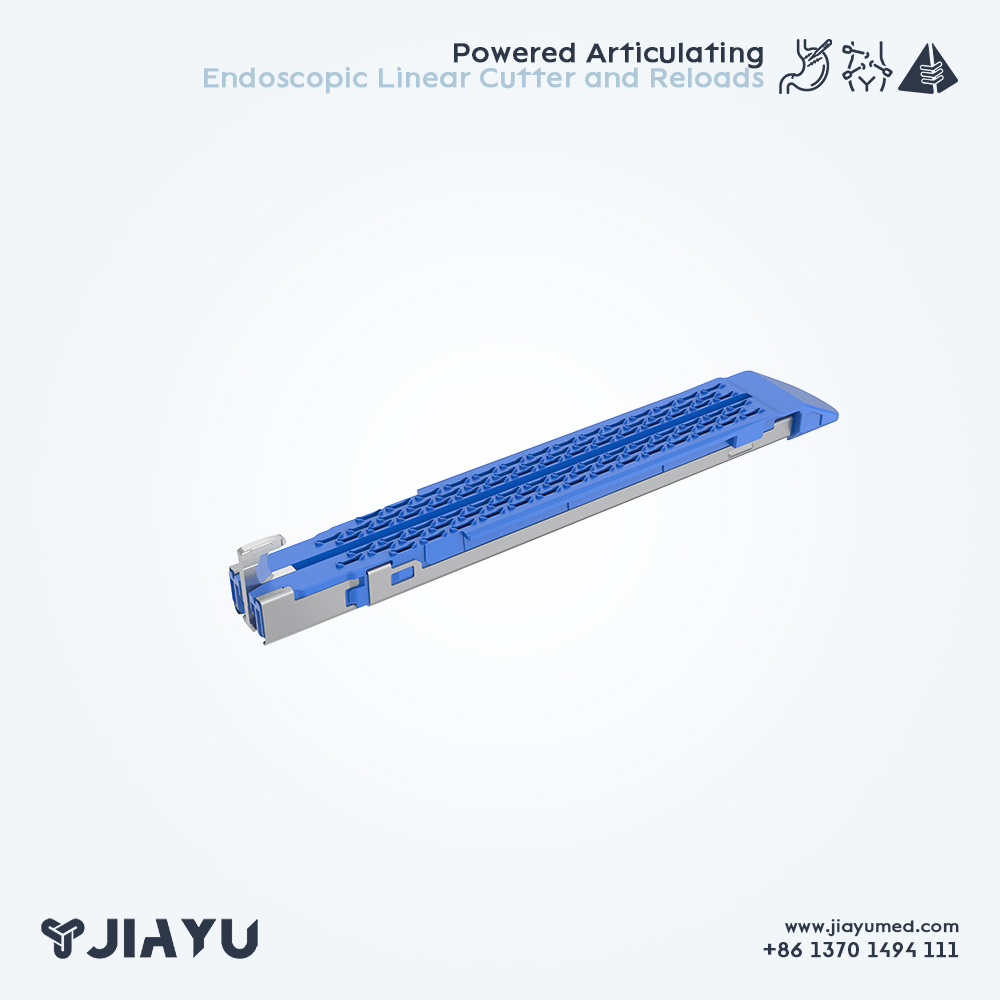

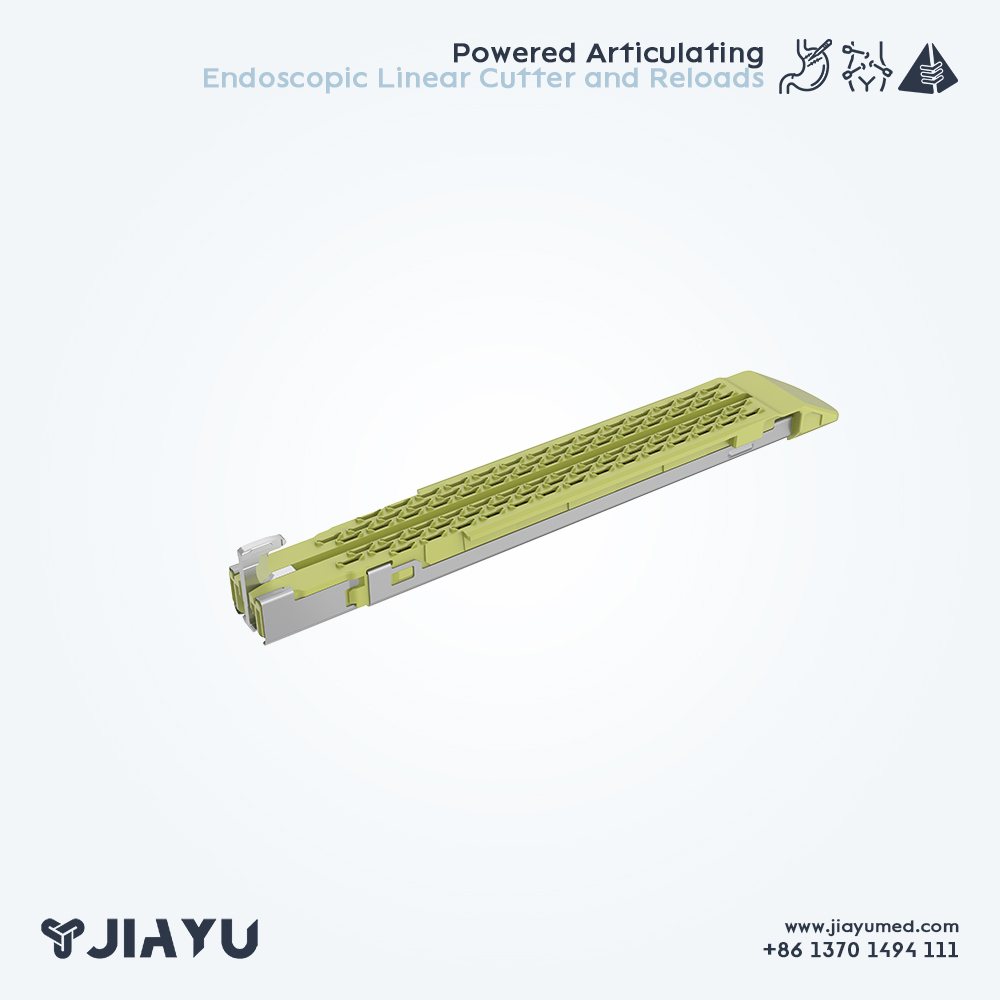

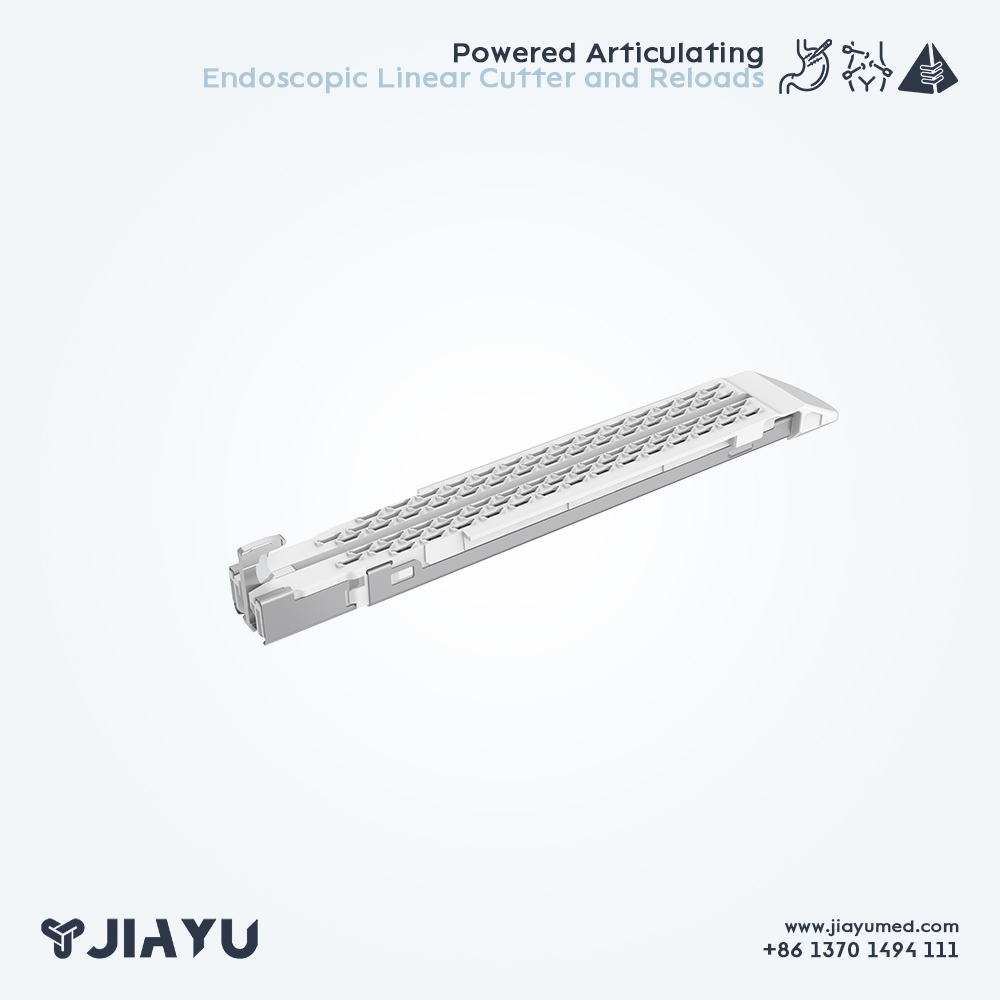

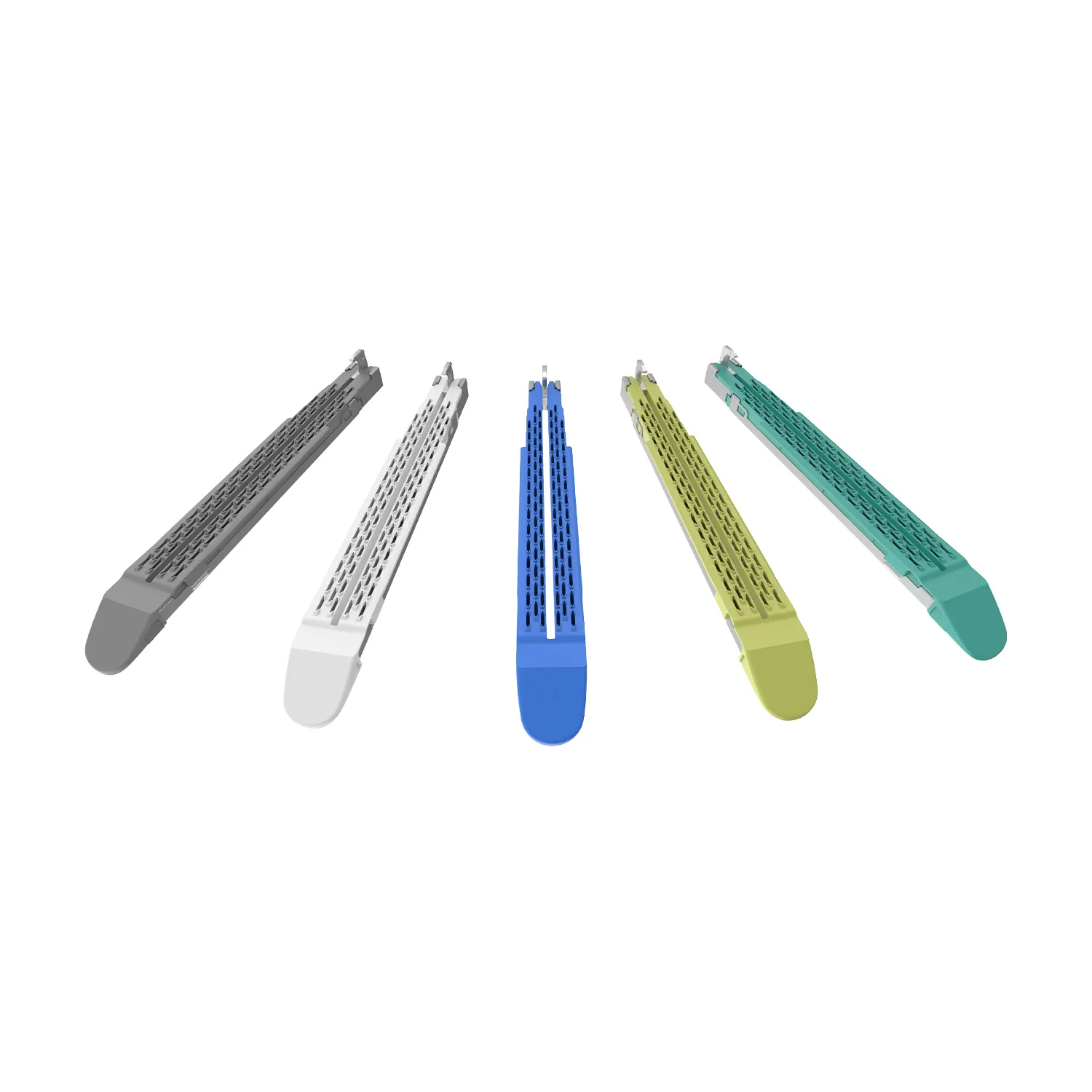

Code	Color	Staple Rows	Staple Line Length	Open Staple Height	Closed Staple Height
JY45-2.0	Gray	6	45mm	2.0mm	0.75mm
JY45-2.5	White	6	45mm	2.5mm	1.0mm
JY45-3.5	Blue	6	45mm	3.5mm	1.5mm
JY45-3.8	Gold	6	45mm	3.8mm	1.8mm
JY45-4.1	Green	6	45mm	4.1mm	2.0mm
JY60-2.0	Gray	6	60mm	2.0mm	0.75mm
JY60-2.5	White	6	60mm	2.5mm	1.0mm
JY60-3.5	Blue	6	60mm	3.5mm	1.5mm
JY60-3.8	Gold	6	60mm	3.8mm	1.8mm
JY60-4.1	Green	6	60mm	4.1mm	2.0mm

General	Procedures	Gyecologic	Urologic
Anastomoses	Vaginal Hysterectomy	Prostatectomy	Lung Resection and Biopsy
Partial Gastoglasty		Nephrectomy	Pulmonary Wedge Resection
Appendectomy		Cystectomy
