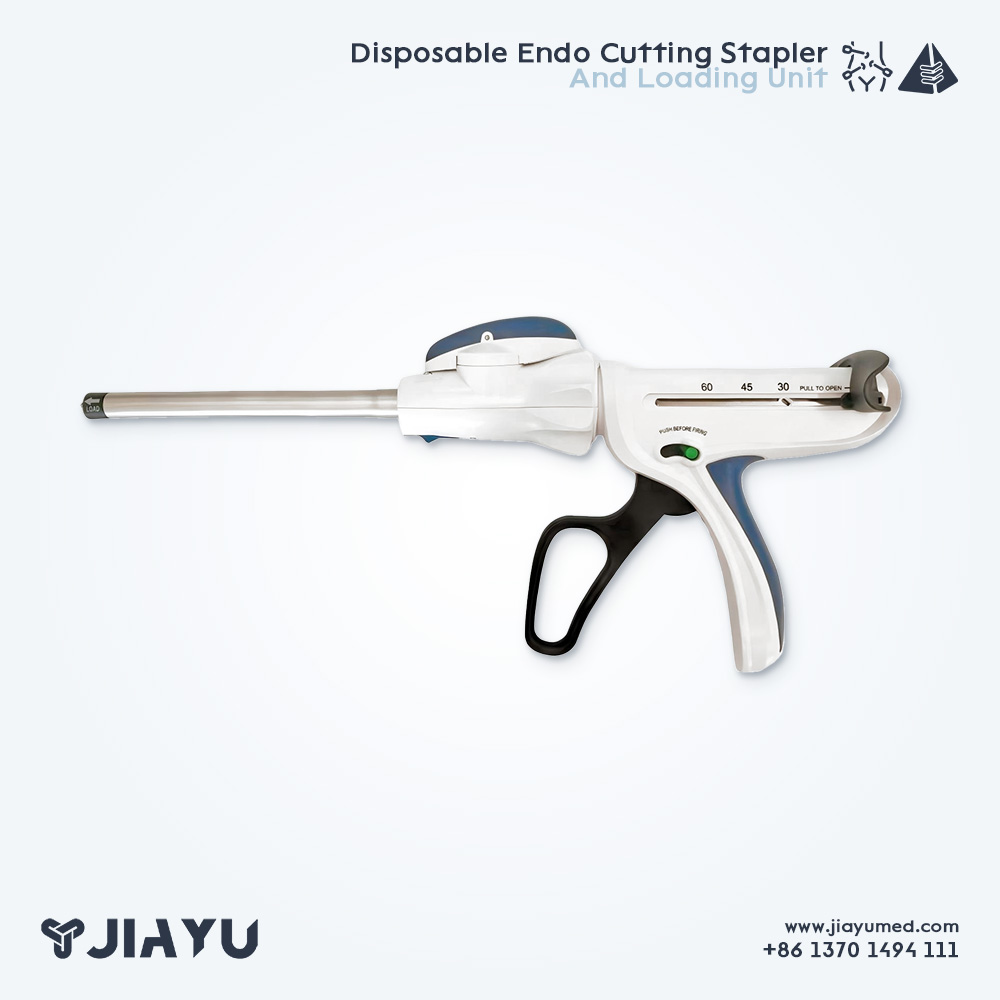

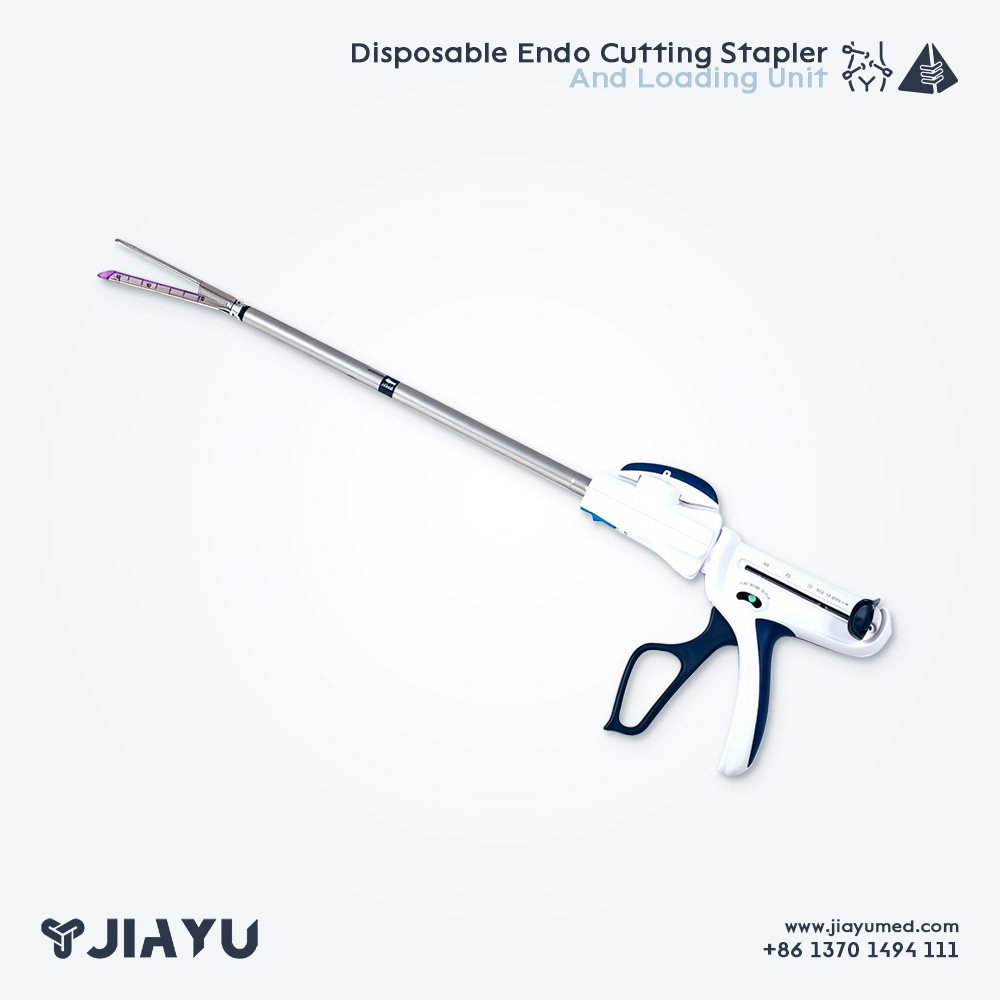

Disposable Endo Cutting Stapler and Loading Unit

This disposable endoscopic cutting stapler and loading unit is designed for tissue excision, transection, and suturing in both open and minimally invasive endoscopic procedures. It delivers reliable, consistent performance in gastrointestinal, esophageal, and respiratory surgeries, supported by a patented staple formation system, ergonomic design, and versatile cartridge compatibility to meet diverse clinical demands for safe and efficient tissue closure.

Patented NDST staple formation technology for enhanced safety and reliability in tissue closure
Curved cartridge with triple graduated staple heights to reduce bleeding and support faster tissue recovery
Flexible articulation and 360° rotating mechanism for precise operation in narrow surgical spaces
Low-profile anvil design for smooth instrument entry and minimal tissue trauma
Single stapler platform compatible with all corresponding cartridge models to reduce procedural complexity
Full range of staple heights and shaft lengths to adapt to diverse tissue thicknesses and surgical cases
Disposable design eliminates cross-contamination risks and reprocessing requirements for streamlined workflow

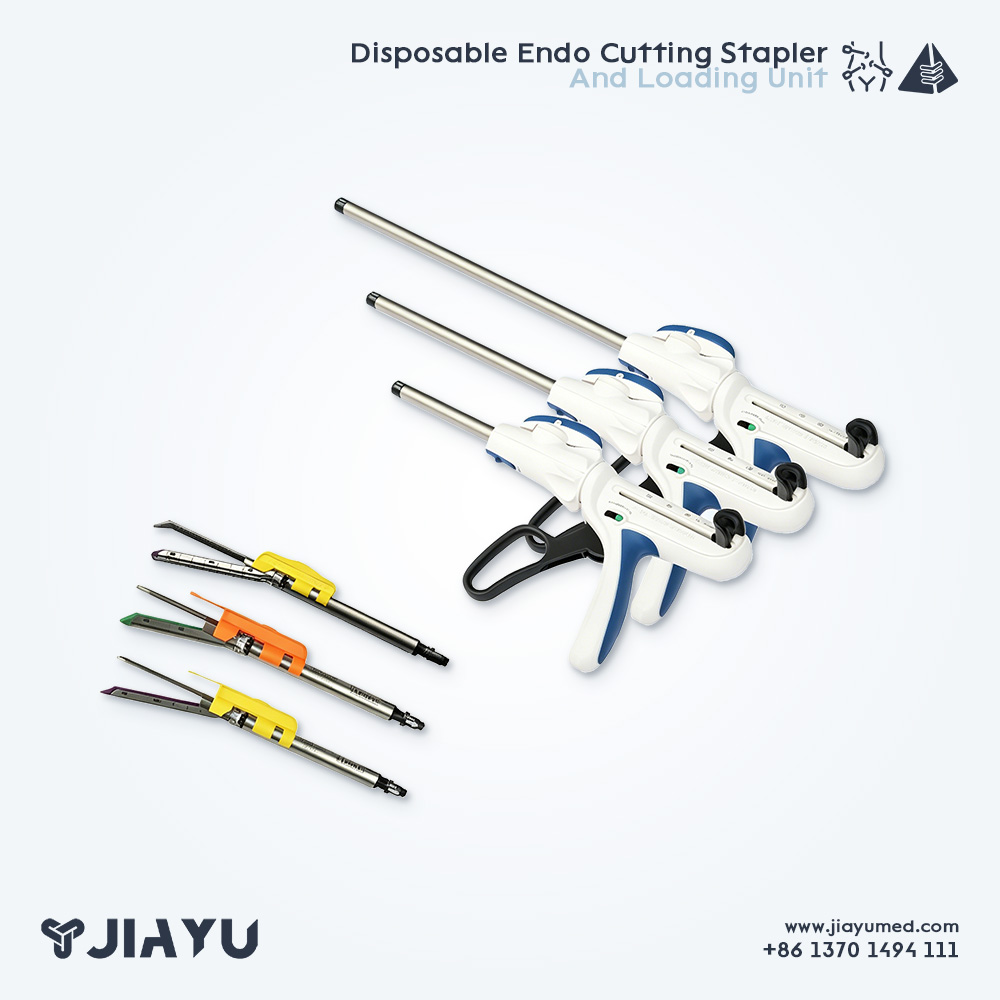

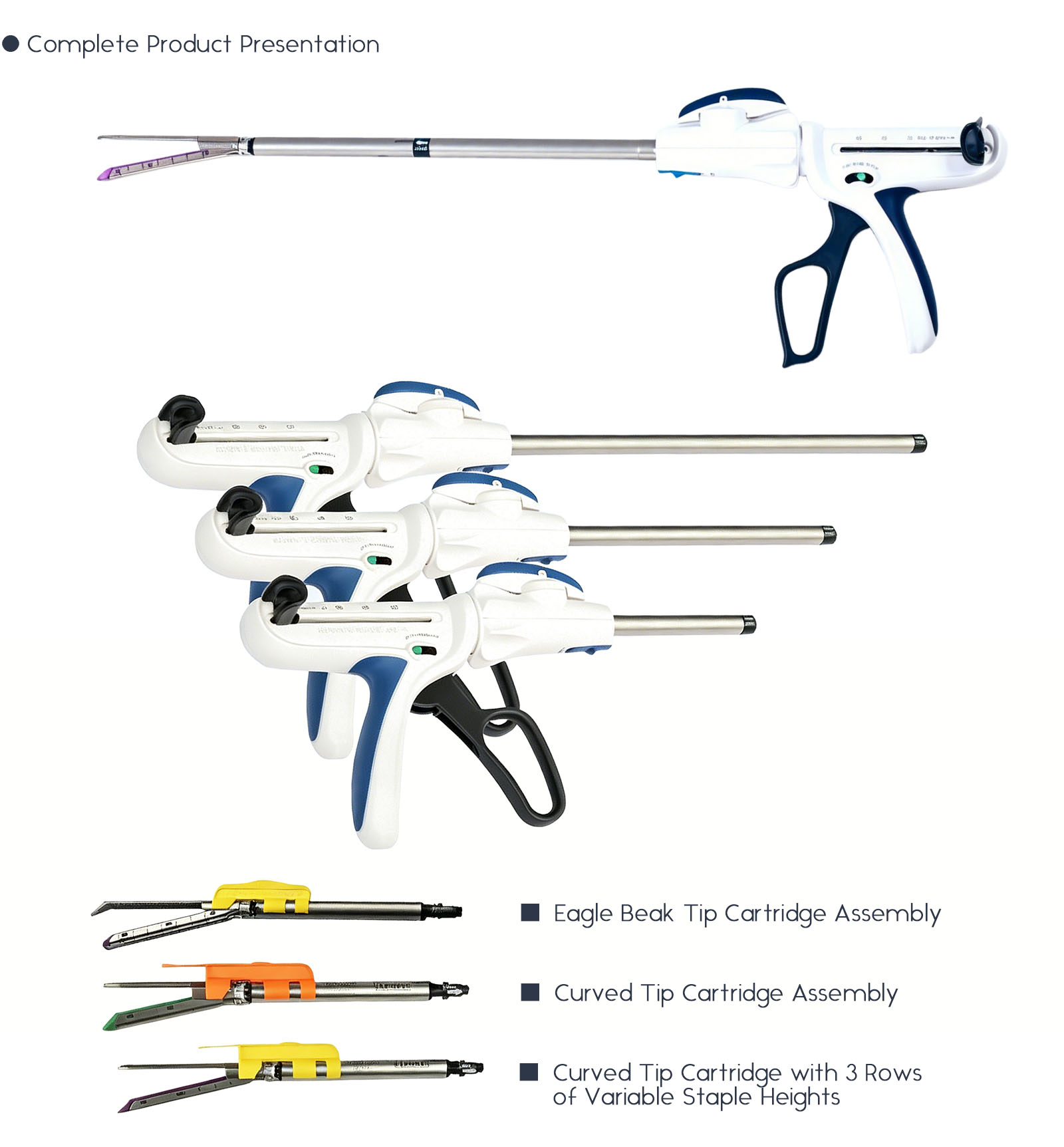

This disposable endoscopic cutting stapler and loading unit is a specialized single-use surgical system engineered for tissue excision, transection, and anastomosis in both open and minimally invasive endoscopic surgeries. It is purpose-built to address clinical needs in gastrointestinal, thoracic, and general surgery, providing consistent, controlled tissue closure across a wide range of soft tissue procedures. The system includes a stapler handle and a complete line of disposable loading units, forming a versatile platform to support diverse procedural requirements.

At the core of the system is the patented NDST staple formation technology, designed to deliver secure, uniform staple closure for enhanced safety and reliability. The curved cartridge features triple rows of staples with graduated heights (low, high, and middle), arranged in an inside-tight, outside-loose configuration to reduce intraoperative bleeding risk and support optimal tissue perfusion for faster recovery. The low-profile anvil design further minimizes tissue trauma, allowing smooth, atraumatic instrument entry without requiring excessive tissue dissection.

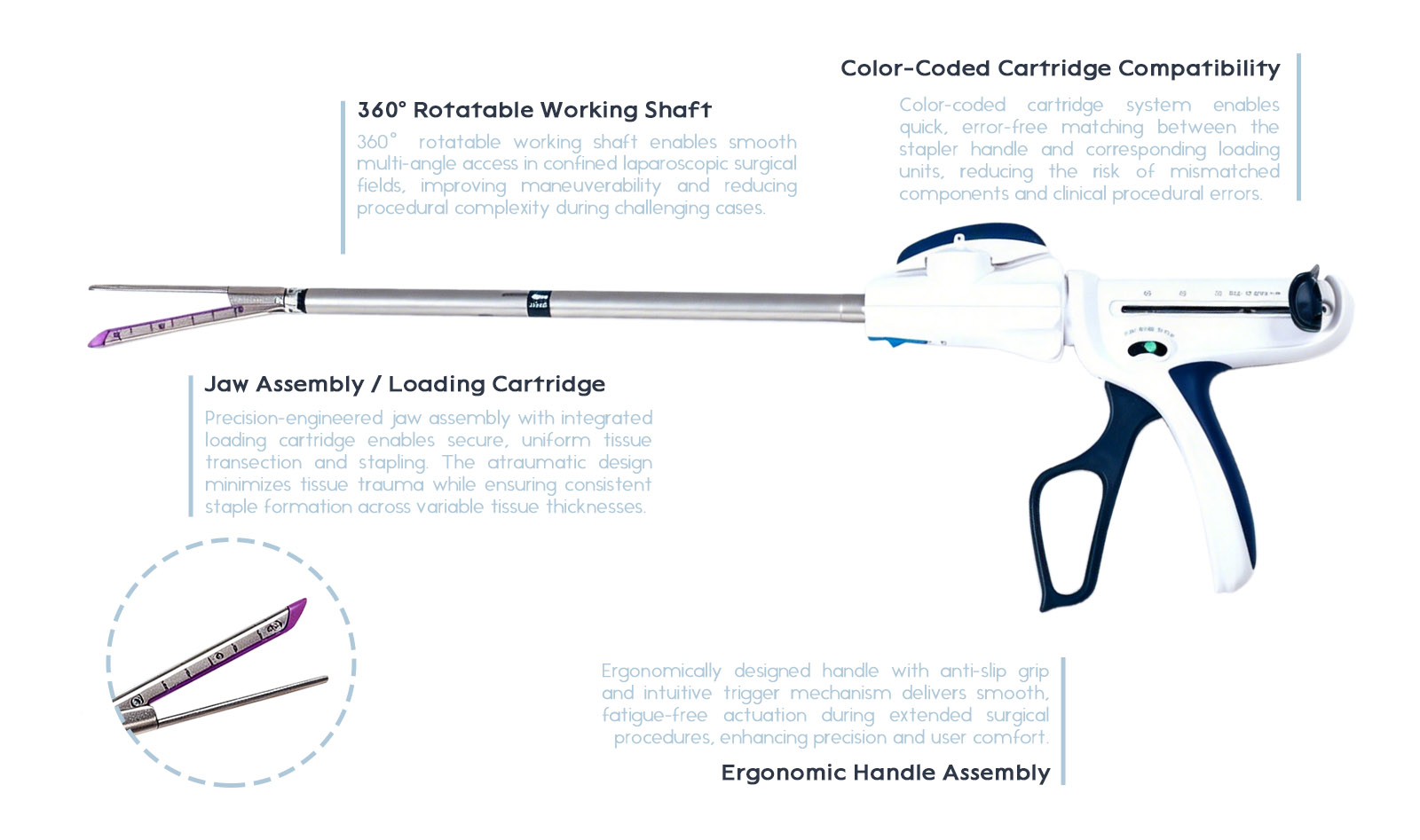

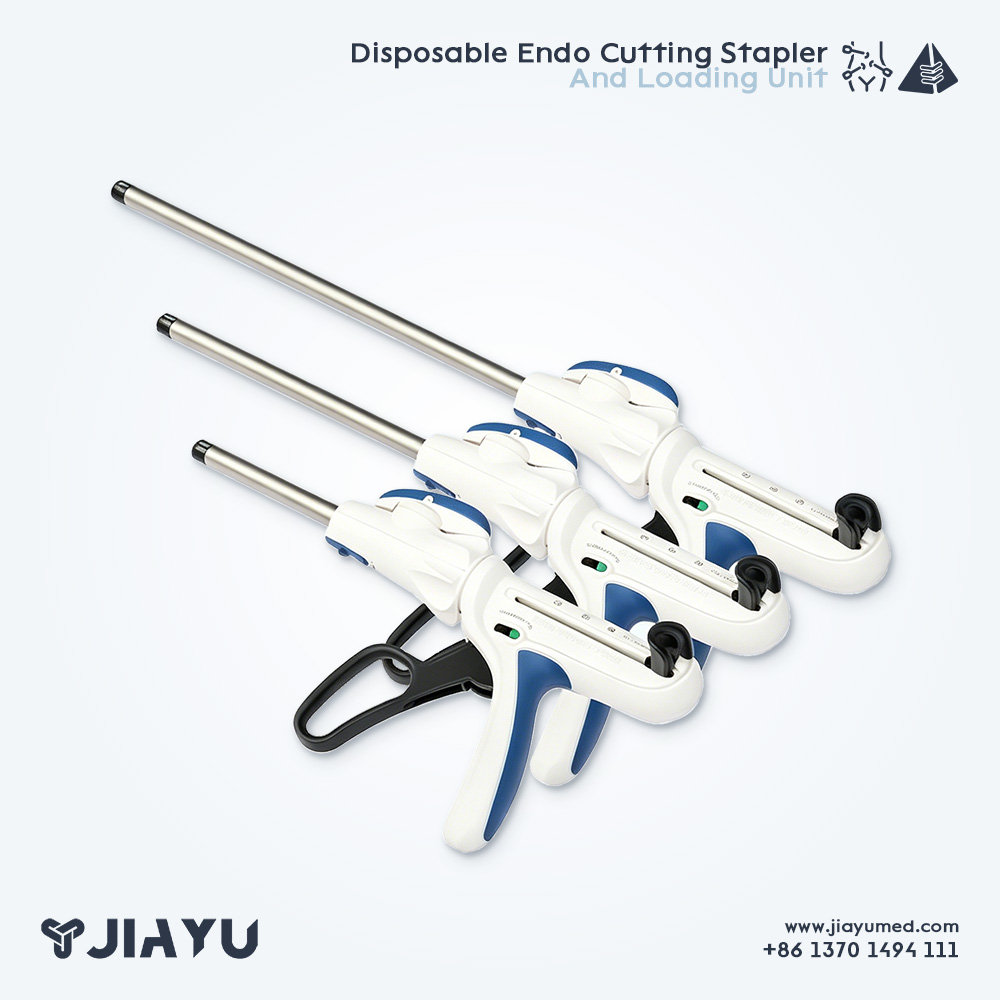

Ergonomic and functional design elements support intuitive, precise operation in challenging surgical environments. The stapler head offers flexible articulation and a 360° rotating mechanism, enabling surgeons to maneuver the instrument easily in narrow, confined spaces to access target tissue from multiple angles. A single stapler handle is compatible with all corresponding cartridge models, eliminating the need for multiple instrument changes during procedures and streamlining workflow for both routine and complex cases.

The system offers a comprehensive range of specifications to match diverse clinical needs, including multiple shaft lengths (60mm, 160mm, 260mm) and staple heights to accommodate varying tissue thicknesses and procedural requirements. As a fully disposable loading unit, it eliminates risks associated with reprocessing, reduces hospital operational workload, and supports efficient patient turnover. This combination of clinical versatility, safety, and operational efficiency makes it a reliable choice for hospitals, surgical centers, and medical institutions performing gastrointestinal and thoracic endoscopic procedures.

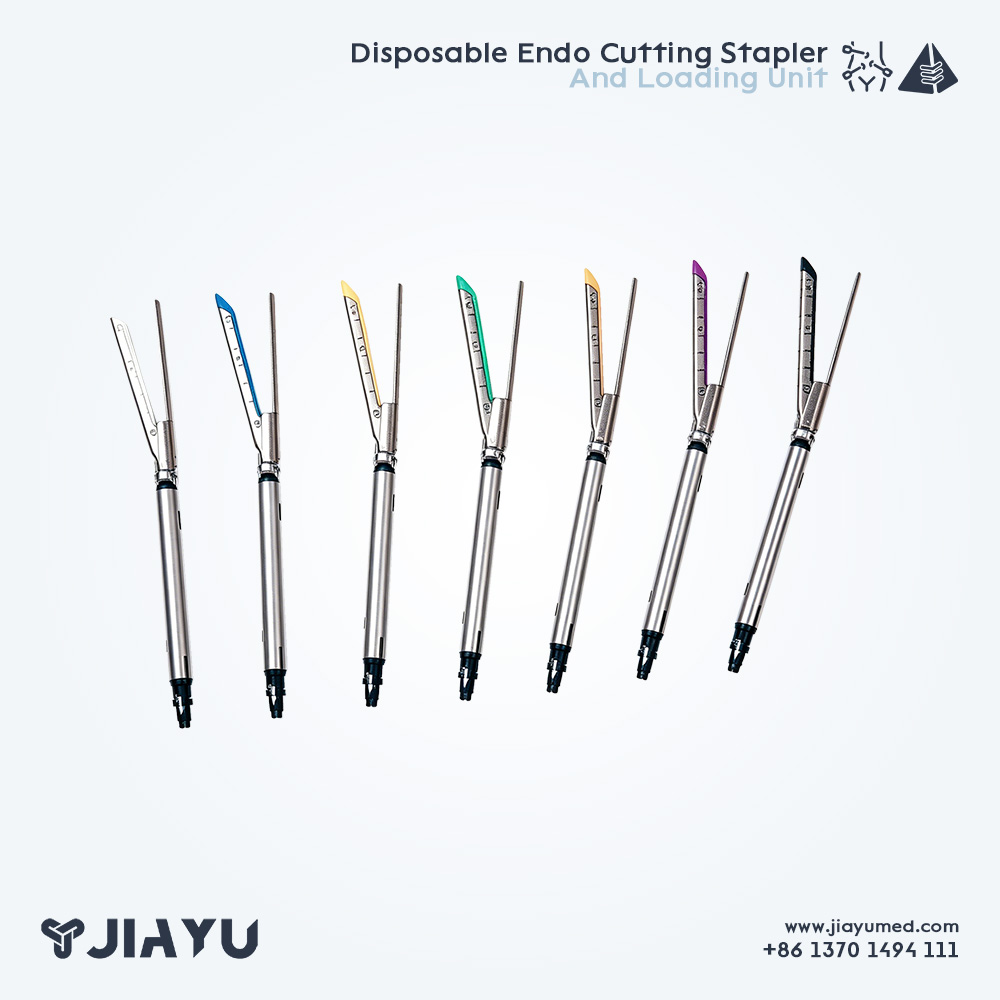

Available Models.

Code	Type	Length	Code	Type	Length
J1006001	JYNQA	60	J090101	JYNQA-P	60
J1016002	JYNQB	160	J090102	JYNQB-P	160
J1026003	JYNQC	260	J090103	JYNQC-P	260

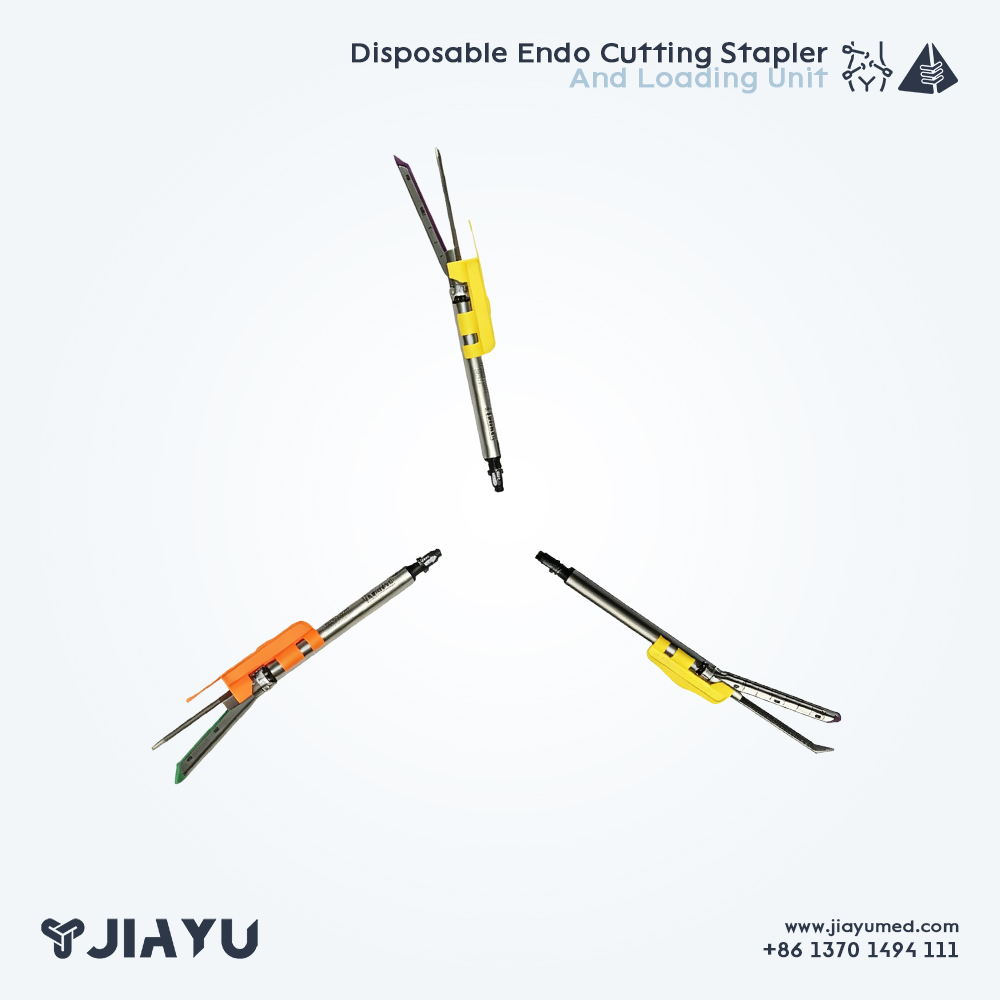

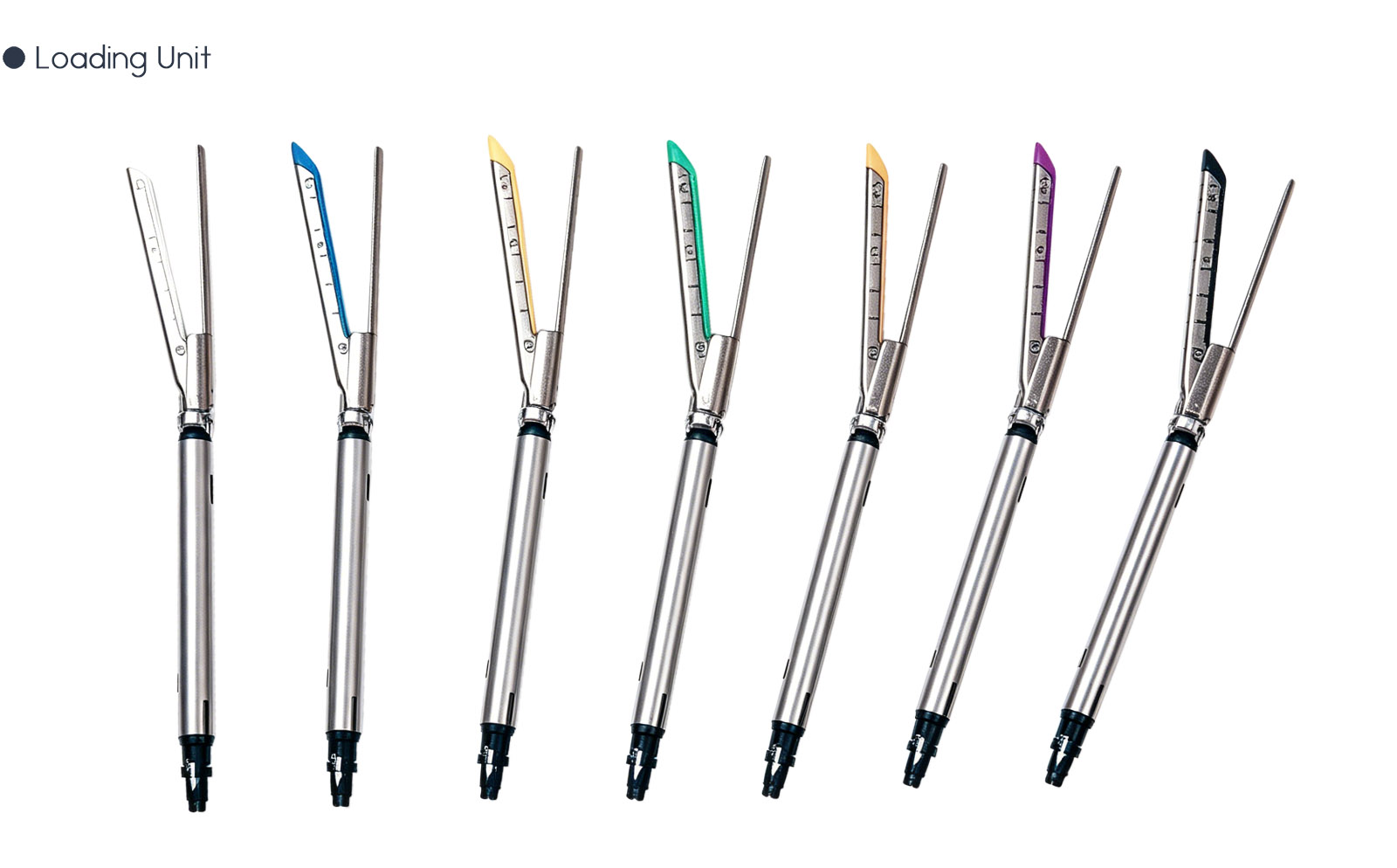

Code	Type	High	Staple Size After Firing	Color
J1030001	JYNZA-3020	2	0.8	GREY
J1045001	JYNZA-4520			GREY
J1060001	JYNZA-6020			GREY
J1030002	JYNZA-3025	2.5	1	WHITE
J1045002	JYNZA-4525			WHITE
J1060002	JYNZA-6025			WHITE
J1030003	JYNZA-3035	3.5	1.5	BLUE
J1045003	JYNZA-4535			BLUE
J1060003	JYNZA-6035			BLUE
J1030004	JYNZA-3038	3.8	1.6	DARJ BLUE
J1045004	JYNZA-4538			DARJ BLUE
J1060004	JYNZA-6038			DARJ BLUE
J1030005	JYNZA-3042	4.2	1.8	GOLDEN
J1045005	JYNZA-4542			GOLDEN
J1060005	JYNZA-6042			GOLDEN
J1030006	JYNZA-3045	4.5	1.9	ORANGE
J1045006	JYNZA-4545			ORANGE
J1060006	JYNZA-6045			ORANGE
J1030007	JYNZA-3048	4.8	2	GREEN
J1045007	JYNZA-4548			GREEN
J1060007	JYNZA-6048			GREEN
J1030008	JYNZT-3025	2.0、2.5、3.0	0.8、1.0、1.25	WHITE
J1045008	JYNZT-4525			WHITE
J1060008	JYNZT-6025			WHITE
J1030009	JYNZT-3035	3.0、3.5、4.0	1.25、1.5、1.75	PURPLE
J1045009	JYNZT-4535			PURPLE
J1060009	JYNZT-6035			PURPLE
J1030010	JYNZT-3045	4.0、4.5、5.0	1.75、1.9、2.05	BLACK
J1045010	JYNZT-4545			BLACK
J1060010	JYNZT-6045			BLACK
J1030011	JYNWA-3020	2	0.8	GREY
J1045011	JYNWA-4520			GREY
J1060011	JYNWA-6020			GREY
J1030012	JYNWA-3025	2.5	1	WHITE
J1045012	JYNWA-4525			WHITE
J1060012	JYNWA-6025			WHITE
J1030013	JYNWA-3035	3.5	1.5	BLUE
J1045013	JYNWA-4535			BLUE
J1060013	JYNWA-6035			BLUE
J1030014	JYNWA-3038	3.8	1.6	DARJ BLUE
J1045014	JYNWA-4538			DARJ BLUE
J1060014	JYNWA-6038			DARJ BLUE
J1030015	JYNWA-3042	4.2	1.8	GOLDEN
J1045015	JYNWA-4542			GOLDEN
J1060015	JYNWA-6042			GOLDEN
J1030016	JYNWA-3045	4.5	1.9	ORANGE
J1045016	JYNWA-4545			ORANGE
J1060016	JYNWA-6045			ORANGE
J1030017	JYNWA-3048	4.8	2	GREEN
J1045017	JYNWA-4548			GREEN
J1060017	JYNWA-6048			GREEN
J1030018	JYNWT-3025	2.0、2.5、3.0	0.8、1.0、1.25	WHITE
J1045018	JYNWT-4525			WHITE
J1060018	JYNWT-6025			WHITE
J1030019	JYNWT-3035	3.0、3.5、4.0	1.25、1.5、1.75	PURPLE
J1045019	JYNWT-4535			PURPLE
J1060019	JYNWT-6035			PURPLE
J1030020	JYNWT-3045	4.0、4.5、5.0	1.75、1.9、2.05	BLACK
J1045020	JYNWT-4545			BLACK
J1060020	JYNWT-6045			BLACK
