Disposable Electronic Cystopelvic Endoscopic Catheter

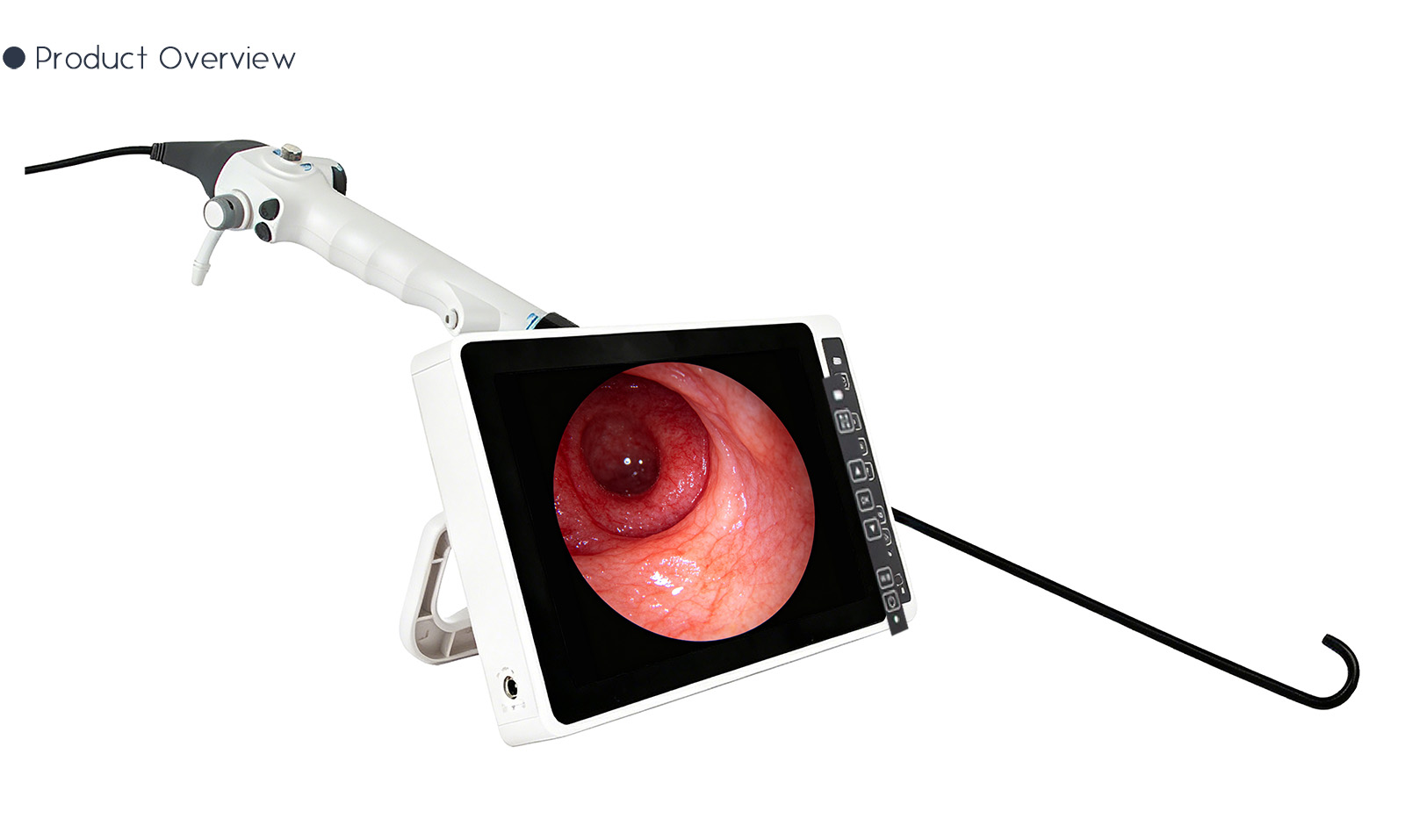

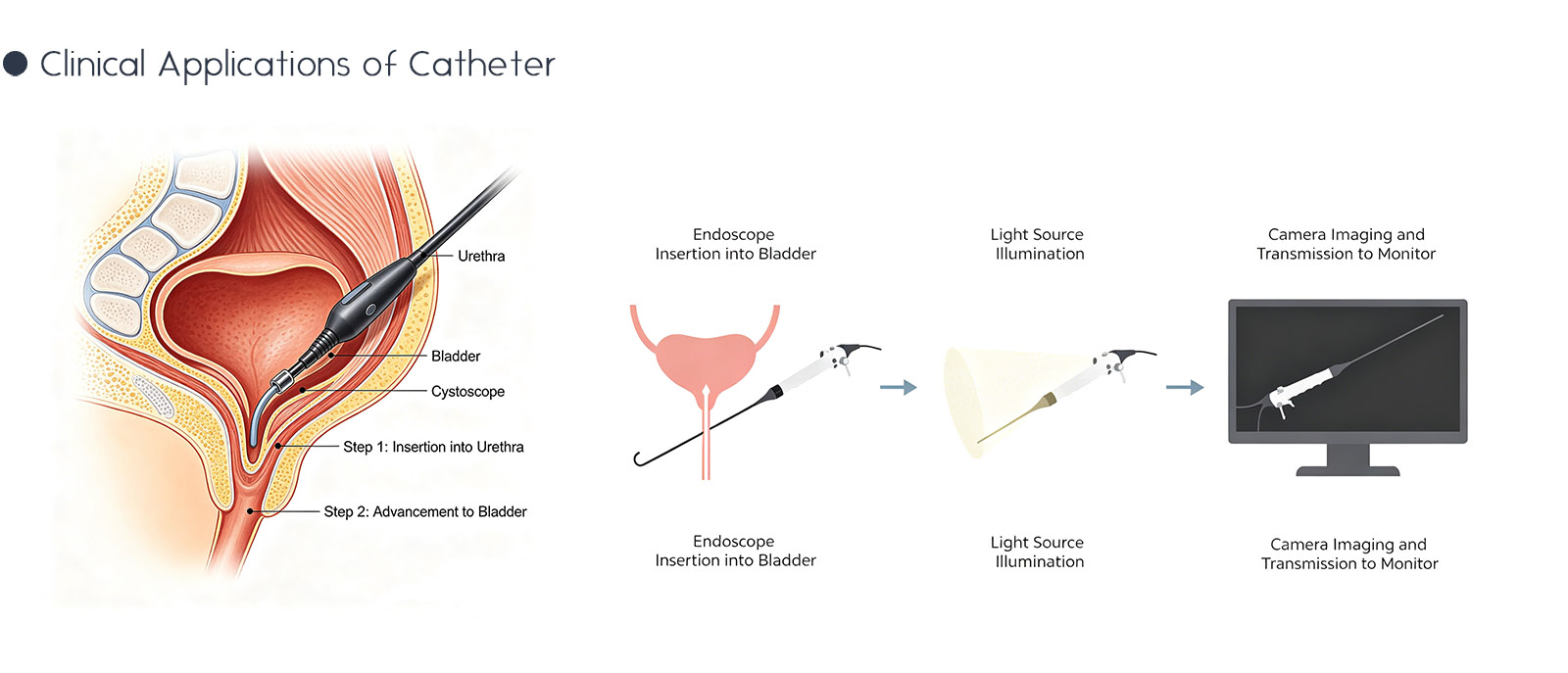

This disposable electronic cystopelvic endoscopic catheter is a single-patient-use urological endoscopic device intended for bladder endoscopic visualization. It is used with a compatible medical endoscopic image processor to deliver real-time imaging via a video monitor, supporting diagnostic and interventional procedures in urology departments with reliable performance, ergonomic operation and infection control advantages.

Disposable design eliminates cross-infection, reprocessing and sterilization
140° wide field angle and 5mm–50mm depth of field for clear visualization
Passive bending up 210° and down 210° for excellent maneuverability
90° left-right insertion rotation for precise instrument positioning
2.2mm working channel compatible with multiple urological instruments
Ergonomic handle with function keys for simplified image control
Ready-to-use, maintenance-free and cost-effective for clinical use

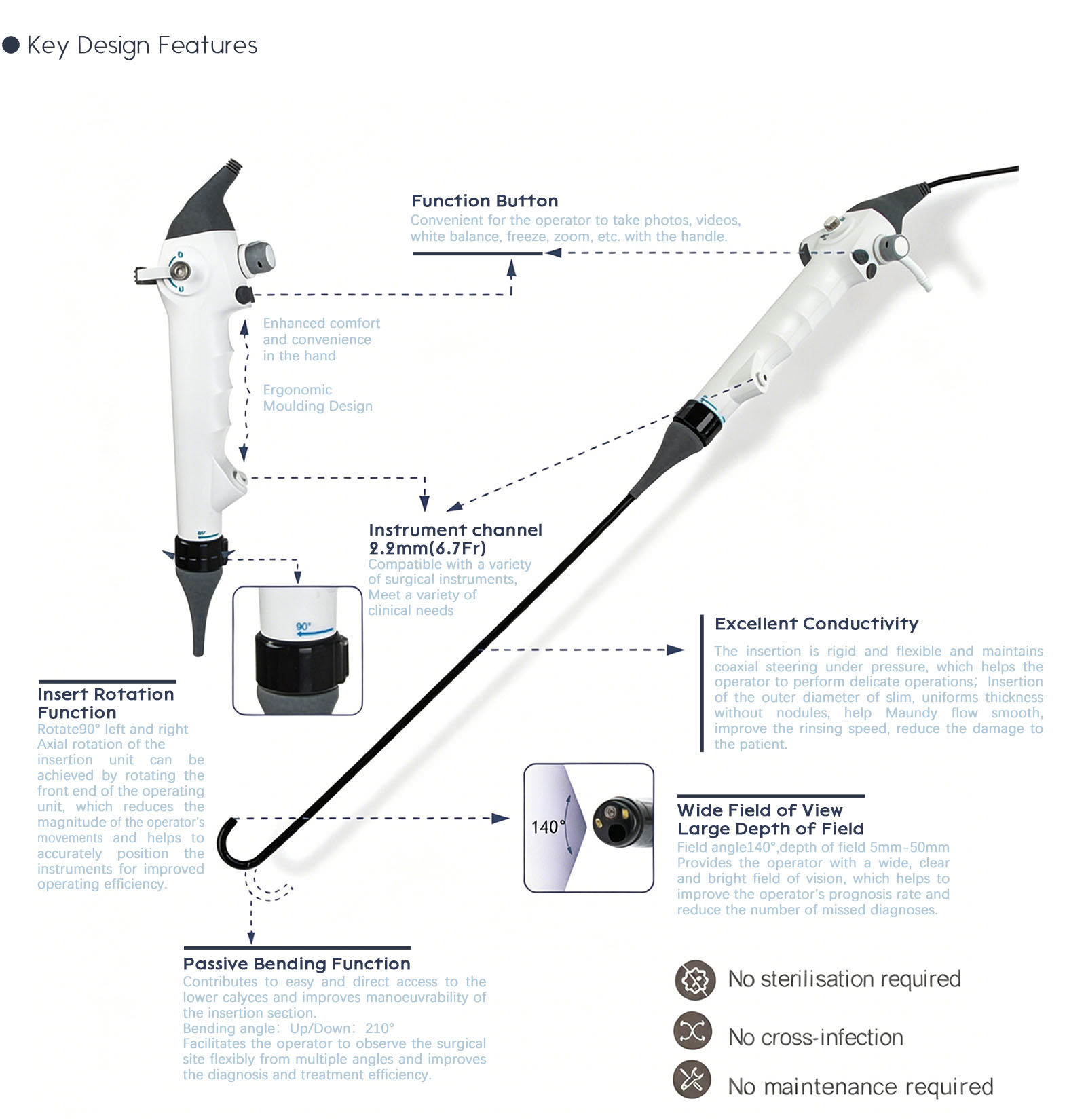

This disposable electronic cystopelvic endoscopic catheter is purpose-built for urological endoscopic examination of the bladder. It features a slim insertion tube with uniform thickness and a smooth nodule-free surface to support smooth insertion, reliable irrigation and reduced tissue irritation. The insertion tube combines rigidity and flexibility to maintain stable coaxial steering under pressure, supporting precise manipulation during clinical procedures.

The device delivers high-quality visual performance with a 140° wide field angle and optimized depth of field, providing a clear and broad view of the target area. It supports 90° left-right axial rotation of the insertion unit and offers up 210°/down 210° passive bending, enabling flexible multi-angle observation and easy access to target regions. These design features improve positioning accuracy and support efficient clinical workflow in urological interventions.

It is equipped with an ergonomic molded handle for enhanced grip comfort and simplified operation. Integrated function buttons allow convenient image capture, video recording, white balance adjustment, freeze and zoom operations. The 2.2mm instrument channel accommodates a variety of endoscopic accessories to meet diverse clinical needs for diagnosis, sampling and intervention in cystopelvic procedures.

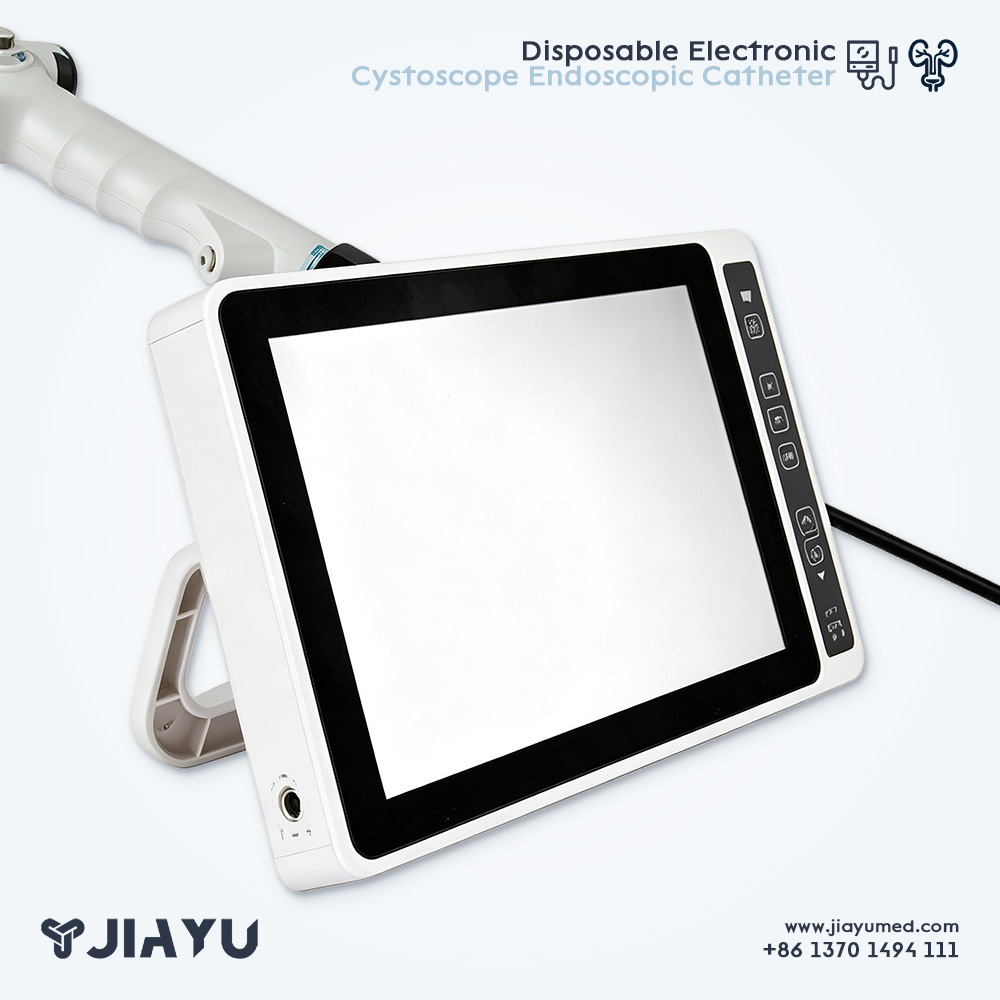

As a fully disposable solution, this catheter requires no cleaning, disinfection or maintenance, effectively eliminating cross-infection risks and reducing hospital operational workload. It is compatible with the matching endoscopic image processor that supports HDMI output, USB data storage, brightness adjustment and patient information management. This integrated system provides a safe, efficient and cost-effective endoscopic solution for urological departments, clinics and medical institutions.
