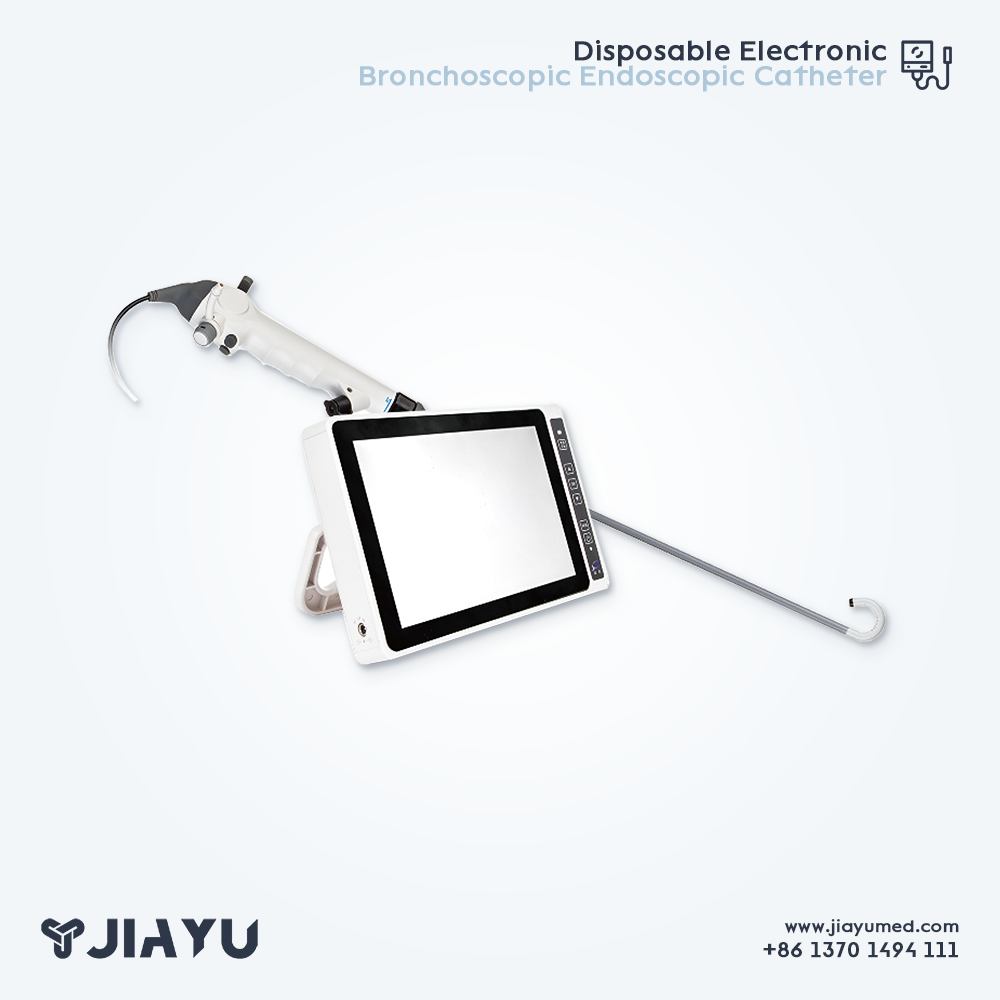

Disposable Electronic Bronchoscopic Catheter

This disposable electronic bronchoscopic catheter is intended for tracheal and bronchial endoscopic visualization, used with compatible medical endoscopic image processors to deliver real-time imaging via video monitor. It integrates ergonomic design, precise articulation, wide field of view and single‑patient‑use safety to support reliable bronchoscopic diagnosis and interventional procedures in respiratory care settings.

Disposable design eliminates cross‑infection, reprocessing and maintenance
120° wide field angle and clear imaging for enhanced visualization
Flexible insertion tube with stable coaxial steering and smooth surface
Up 130° / Down 180° passive bending for improved maneuverability
Ergonomic handle with function buttons for image control
Instrument channel 1.2 mm–3.0 mm compatible with multiple accessories
Ready‑to‑use, cost‑effective and suitable for high‑volume clinical use

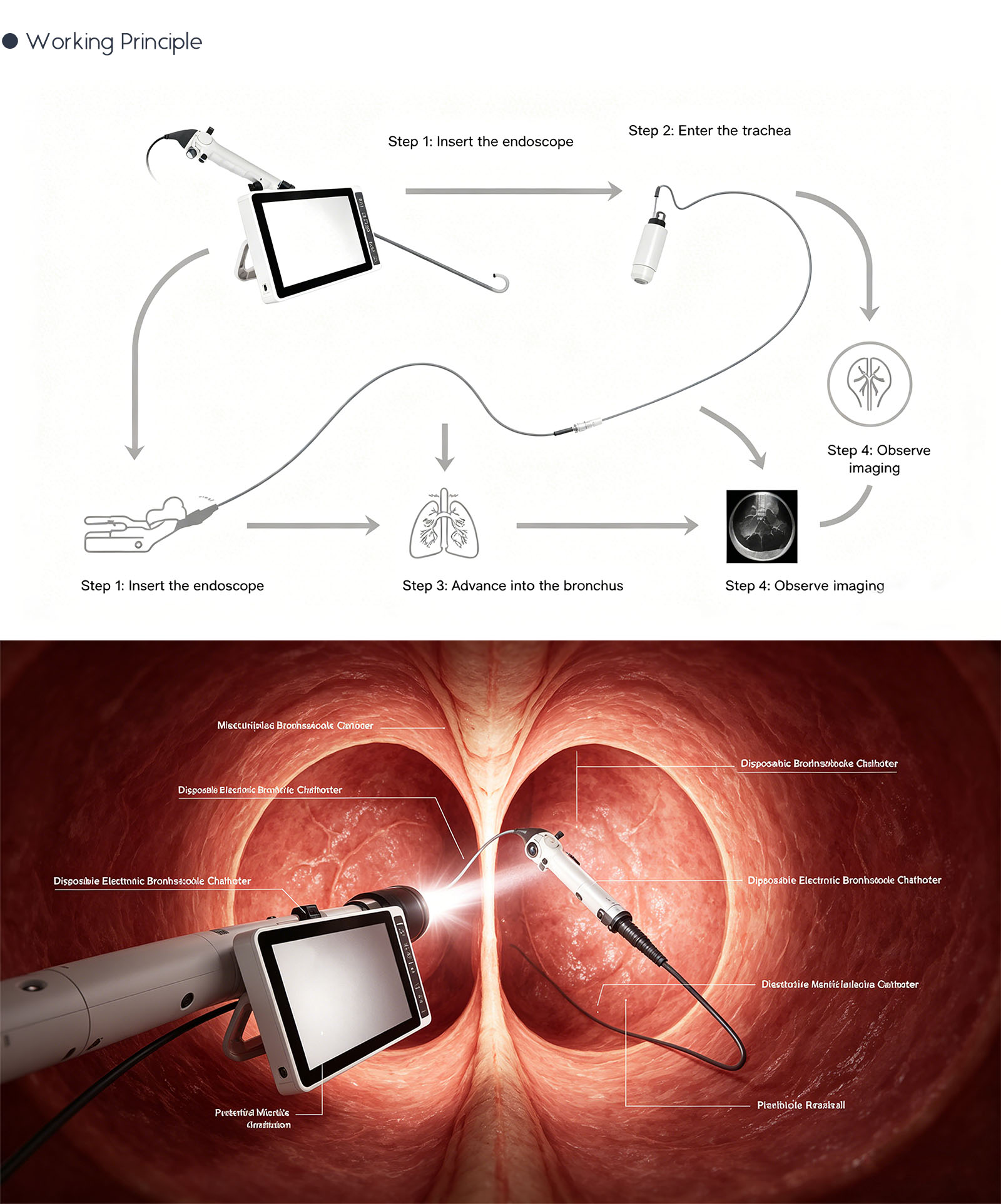

This disposable electronic bronchoscopic catheter is a single‑patient‑use endoscopic device designed for tracheal and bronchial examination. It works with a matching medical endoscopic image processor to transmit real‑time images to a video monitor, supporting diagnostic and interventional bronchoscopy. The slim insertion tube with uniform thickness and smooth surface helps ensure smooth insertion, reliable passage and reduced mucosal irritation during clinical use.

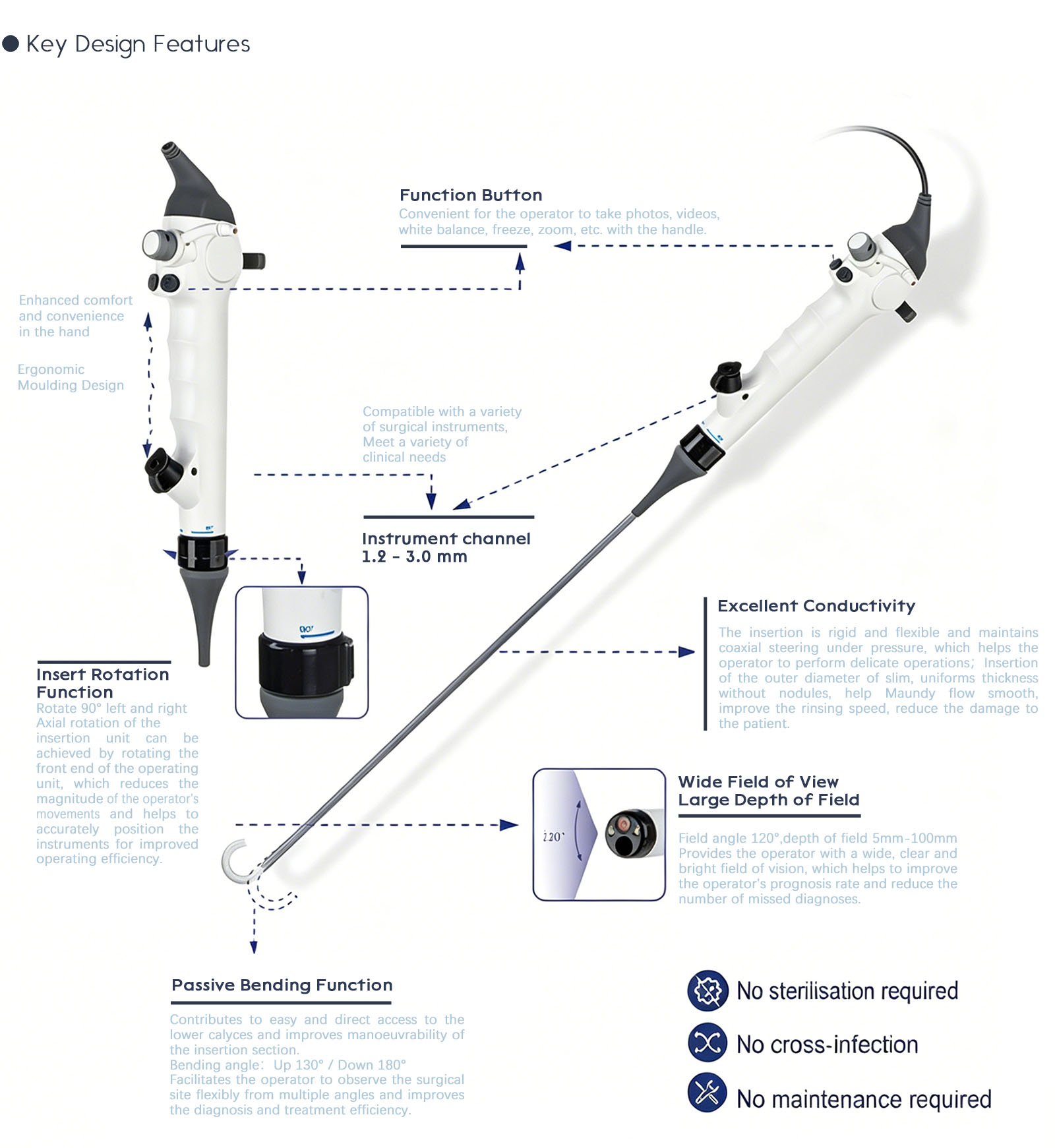

The catheter features a high‑performance imaging system with a 120° wide field angle and optimized depth of field, delivering clear, bright and consistent viewing for anatomical assessment. The passive bending design provides Up 130° and Down 180° articulation, allowing flexible multi‑angle observation and easier access to target areas. The insertion unit also supports 90° left and right rotation to improve positioning accuracy and procedural efficiency.

It is built with an ergonomic molded handle for comfortable grip and simplified operation. Integrated function buttons support one‑touch image capture, video recording, white balance, freeze and zoom functions. The instrument channel is available in diameters from 1.2 mm to 3.0 mm to accommodate a range of endoscopic instruments, meeting diverse clinical requirements for sampling, lavage and other interventions.

As a fully disposable device, it requires no cleaning, disinfection or sterilization, effectively eliminating cross‑infection risks and lowering hospital workload. The ready‑to‑use format supports rapid turnover for consecutive procedures, while maintenance‑free construction reduces long‑term operational costs. Its stable structure, reliable conductivity and coordinated articulation support consistent performance in respiratory, ICU and bronchoscopy suites.

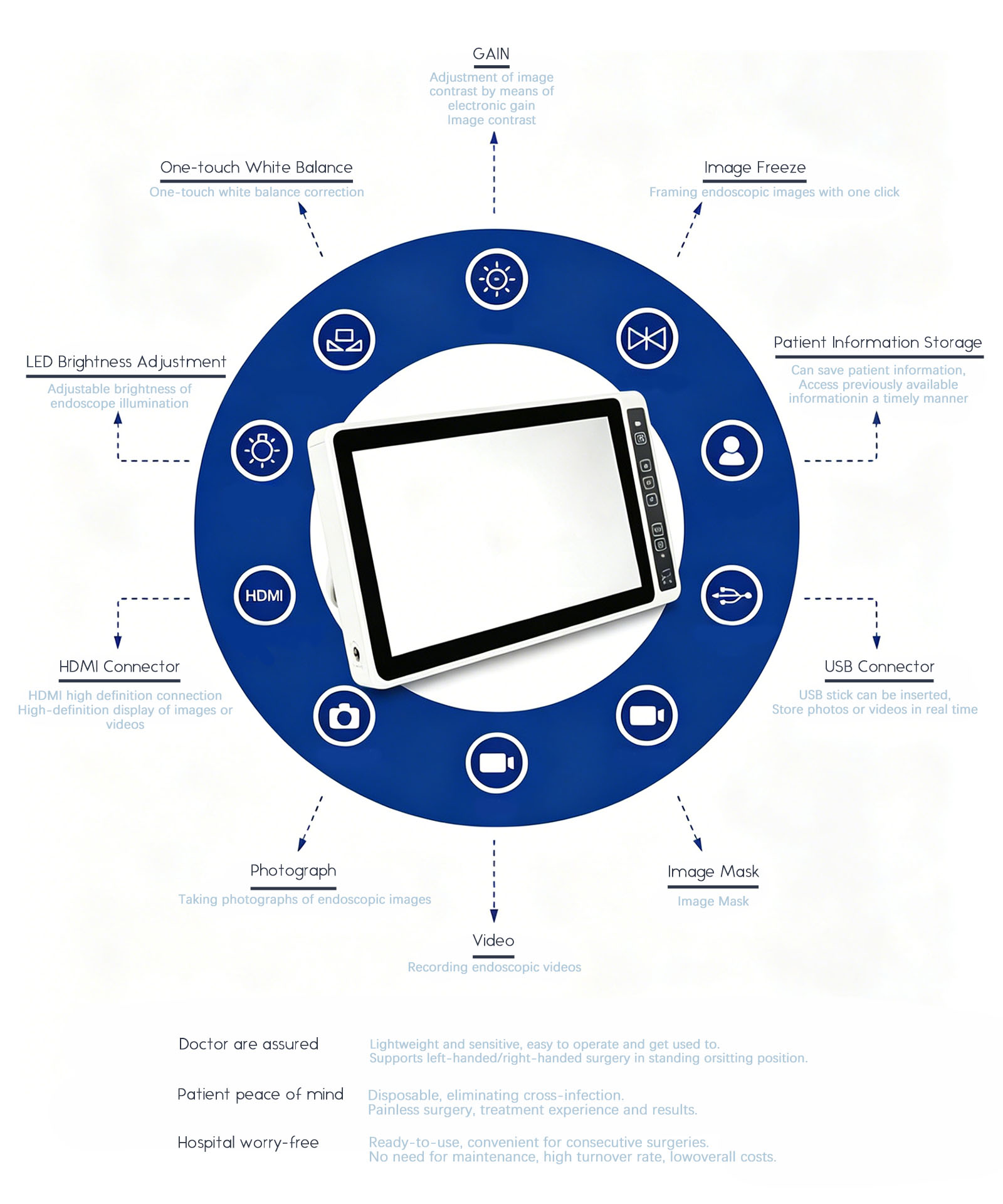

The system is compatible with the matching endoscopic image processor equipped with HDMI and USB connectivity for real‑time data storage, brightness adjustment, contrast control and patient information management. This integrated solution supports standardized documentation, streamlined workflow and reliable clinical performance for respiratory departments and medical institutions.

Available Models.

Model Number	OD	Working Channel	Working Length	View Angle	Rotating Angle
JY-2000	2.0mm±10%	–	670mm±3%	140°	180°
JY-3012	3.0mm±10%	≥1.2mm
JY-3200	3.2mm±10%	–
JY-3818	3.8mm±10%	≥1.8mm
JY-4220	4.2mm±10%	≥2.0mm
JY-4926	4.9mm±10%	≥2.6mm
JY-5222	5.2mm±10%	≥2.2mm
JY-5830	5.8mm±10%	≥3.0mm
