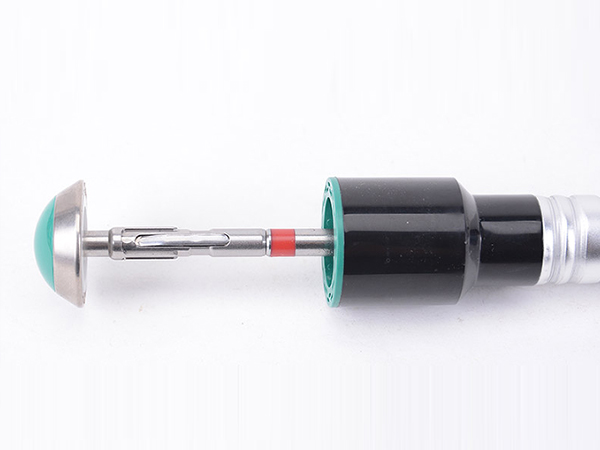

Disposable Circular Stapler
Application:
It is suitable for end-to-end anastomosis, endo-to-side anastomosis and lateral anastomosis in digestive tract reconstruction such as esophagus, stomach and intestine.
Contact Us
Contact: Rachel
E-mail: Rachel@czjy-med.com
Mobile: +86 13701494111
Features and Advantages:
The viewing window accurately displays suture thickness.
Optimal staple density reduces postoperative bleeding.
Imported titanium wire offers more stable tensile strength and torsion resistance, ensuring a stable B-shaped staple pattern.

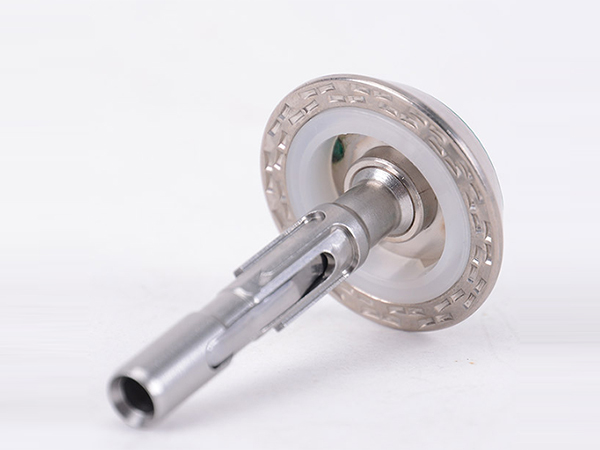

The integrally molded anvil reduces tissue irritation and improves staple morphology.
A small inner-outer diameter ratio effectively prevents anastomotic stenosis.
A minimum anastomotic gap is designed to prevent tissue damage caused by excessive pressure.
The ergonomic design provides comfortable and smooth operation.
| No. | Spec# | L(mm） | H(mm） | Φ D(mm) | Φd(mm) | Number of staples | Φd1*h(mm) | cartridge color |
| 1 | #21 | 460 | 145 | Φ22 | Φ13 | 18 | 0.3*4.5 | dark blue |
| 2 | #24 | 460 | 145 | Φ24 | Φ15 | 18 | 0.3*4.8 | yellow |
| 3 | #26 | 460 | 145 | Φ26 | Φ17 | 20 | 0.3*4.8 | light blue |
| 4 | #29 | 460 | 145 | Φ29 | Φ20 | 24 | 0.3*4.8 | green |
| 5 | #32 | 460 | 145 | Φ32 | Φ22 | 30 | 0.3*5.0 | white |
| 6 | #34 | 460 | 145 | Φ34 | Φ24 | 32 | 0.3*5.0 | grey |
